| Display
Name |

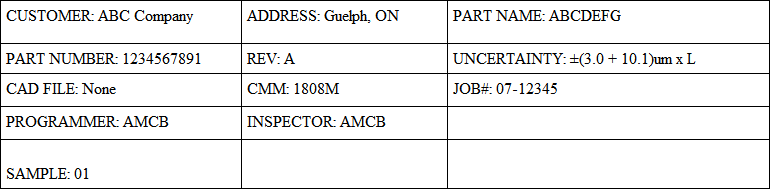

Lists the report information
fields as shown in the header, footer, title page, or notes. To change the Display
Name, click a row in the table and enter a new
Display Name. Click
Update to update the
row.
For example, you could change
Part Number to
Customer Part
Number.
|
| Search
Names |
Lists the search parameters for locating and
reading in information from a text output file. To
change the Search Names,
click a row in the table and enter the text that CMM Data Import
looks for in the text output file. Click Update to update the row.
For example, if you designated the part number
in the CMM file as Part#,
enter Part# for
Search Names. If you
have more than one method of identifying the same information,
enter all variations, separated by commas.
The more variations, the longer
it takes to scan for information.
|
| Parse
Custom Field |
|
| ID |
|
| Divider |
|
| Format |
|
| Update |
Replaces the ID row in the table with the
Display Name and
Search Names you
edited. |
| Remove |
Deletes the Display Name and Search Names for the selected ID in
the table. |
| Clear |
Removes all text. |
| Extract
sample and job information |
Extracts job information from the
CMM output file. |
| Key
names only |
Searches for the first three ID
Search Names. |
| Search
entire doc. |
Searches the entire document for
data (including data in the body or after the measurements). It does
not search only the beginning for job information. Place all job information fields before the measurements in the
CMM output file to be located by the search routine.
Not recommended because it
causes a longer search process.
|
| Pre
delim. |
Lists characters that precede
Search Names in the CMM
output file. |
| Post
delim. |
Lists characters that follow
Search Names in the CMM
output file. |
| Strip
chars. |
Lists characters to strip from
the Search Names. |
| Result post del. |
Lists characters found after the
Search Names. |
