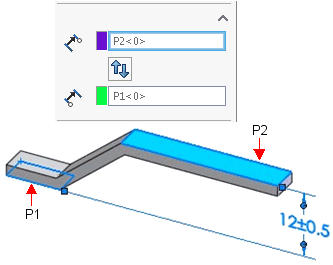

Tolerance Modifier |
Applies ISO 14405-1:2016
standards-based symbols to dimensions and tolerances in DimXpert. You can add symbols and other text directly to
ISO dimensions and their tolerances.
|
|
Callout
value |
For hole type callouts with
multiple specifications, all dimensions are listed individually.
This functionality is valid for simple holes with depth, counterbore
holes, countersink holes, combined slot dimensions, and
chamfers. |
 |
Tolerance Type |
Select from the list. Selections
available depend on the type of dimension. |
 |
Maximum
Variation |
|
 |
Minimum Variation |
|
|
Show
parentheses |
Inserts parentheses around the
tolerance value. |
 |
Unit
Precision |
Select the number of digits after
the decimal point from the list for the dimension value. |
 |
Tolerance Precision |
Select the number of digits after
the decimal point for tolerance values. |
For Holes and Shafts: |
|
|
 |
Classification |
(Fit, Fit with
tolerance, or Fit
(tolerance only)) When you select either Hole Fit or Shaft Fit (below), the list for the
other category (Hole Fit or
Shaft Fit) is filtered
based on the classification. |
 |
Hole
Fit and Shaft
Fit |
(Fit, Fit with
tolerance, or Fit
(tolerance only)) Select from the lists, or type any
text. Bilateral tolerances
(Maximum Variation
and Minimum Variation)
are available in the Fit with
tolerance or Fit
(tolerance only) type if you specify Hole Fit or Shaft Fit, but not
both.
|
|
Fit
tolerance display |
(Fit, Fit with
tolerance, or Fit
(tolerance only)) Select one of the following:
Stacked with line display
|
|
Stacked without line display
|
|
Linear display
|
|
|
