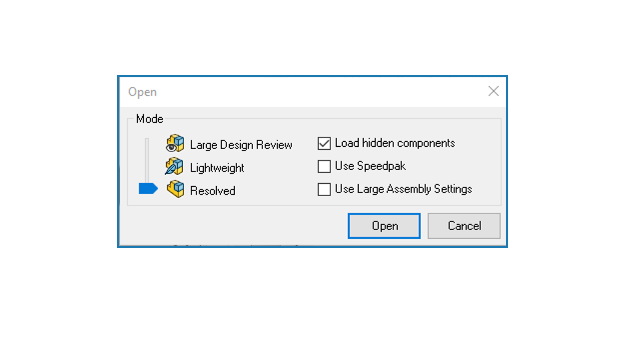

The
Open dialog box contains different options to open SOLIDWORKS
objects in the 3DEXPERIENCE platform. This dialog box appears only
when you select
Choose the mode before opening
file
in the Options dialog box of MySession.
The
Open dialog box appears from multiple web apps:
MySession, 3DSearch, Relations, Product Structure Editor,
and
drag from the
3DEXPERIENCE platform.
Depending on the type of object, different
options
are displayed.
| Object Type |
Open Mode Type |
Options |
| Assembly By
default, the selected open mode is Resolved. If SOLIDWORKS
settings are enabled, the default open mode depends on the
attribute selected in the System Options
of SOLIDWORKS.
|
Resolved |
- Load hidden components
- Use Speedpak
- Use Large Assembly Settings
|
| Lightweight |
- Load hidden components
- Use Speedpak
- Use Large Assembly Settings
|
| Large Design Review |
Edit Assembly |
| Part The default
open mode is always Resolved.
|
Resolved |
NA |
| Quick View |
NA |
| Drawing The
default open mode is Resolved but the default mode can be
different based on the choice made in the System Options of SOLIDWORKS.
|
Resolved |
NA |
| Lightweight |
NA |
| Detailing |
NA |
| Quick View |
NA |
- When you choose a combination of assembly, part, and
drawing, or assembly and drawing, the open mode options displayed are of
assembly.
- When you choose a combination of parts and drawing, the open
mode options displayed are of drawings.
