You can change the display style of existing angular running dimensions.
To change the display of angular running dimensions:
In the graphics area, right-click an angular running dimension that is on the model. In the Dimension PropertyManager on the Leaders tab, choose from these options:
| Option |
Description |
|---|

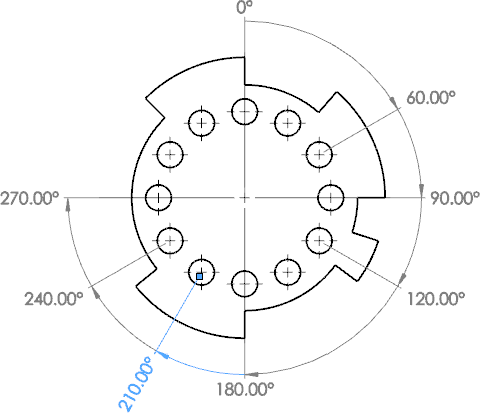

| Display as chain dimension |
Displays angular running dimensions as chain dimensions. |
|---|

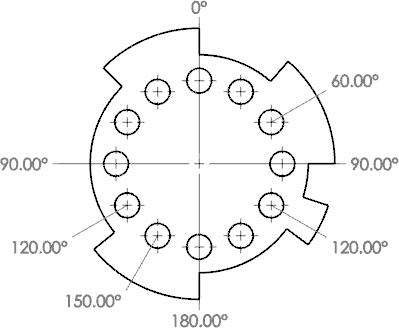

| Run bidirectionally |
Causes all angular dimensions to run from the base in the closest direction. No dimension is greater than 180° from the base.
|
|---|

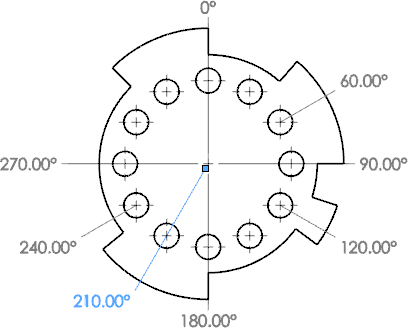

| Extension line extends from center of set |
Extends the extension line to the center of the dimension set.
|
|---|
| Custom Text Position |
Changes text position for the selected dimension. For example, click  to place the text inline.
|
|---|
