You can visualize
each wire in a bundle distinctly in 3D and flatten
them.

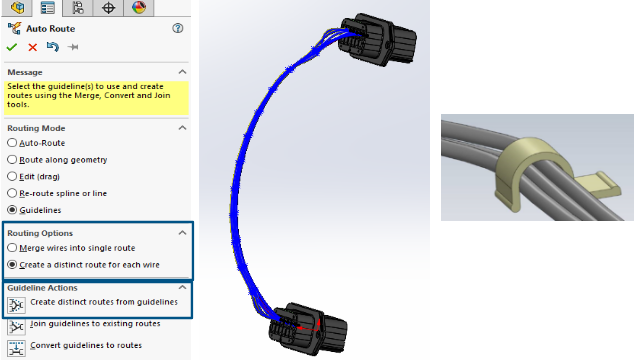

The
Auto
Route PropertyManager,
Routing
Options include:
- Merge wires into single
route. Routes the selected wires along a single route.
- Create a distinct route for each
wire. Routes the selected wires as distinct routes.
You can edit discrete wires by:
- Adding a route to the bundle with Add
Route to Discrete Bundle.
- Removing a route from the bundle with Remove Route from Discrete Bundle.
- Moving the bundle by dragging a spline point on the discrete
wire.
- Merging two bundles with Merge
Discrete Bundle.
- Splitting a single route segment from the bundle.
- Creating a single junction point for multiple discrete bundles
coming out from the connector or separate junction point for each discrete
bundle.
- Routing the bundle through a clip by selecting one of its
splines.
- Handling splices.
