Hatch Commands (DraftSight Mechanical Only) (2024 SP3)

You can run the AM_UserHatch command to apply user-defined or predefined hatches on enclosed geometry.

You can run the AM_UserHatchEdit command to edit the hatches.

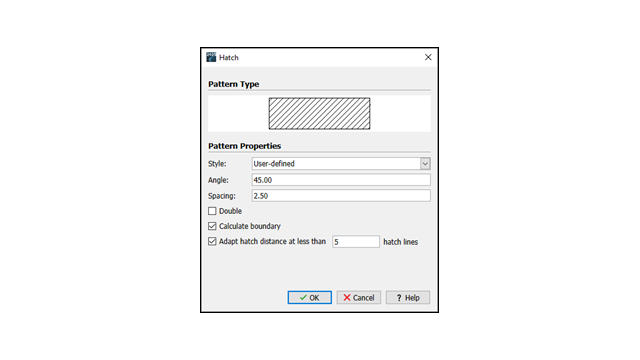

When you run these commands, the Hatch dialog box opens where you can:
  • Specify the angle of hatch lines.
  • Specify spacing between hatch lines.
  • Specify the number of hatch lines if the area to hatch is small enough to match the specified pattern.
  • Calculate the new boundaries of an area when editing a hatch.
