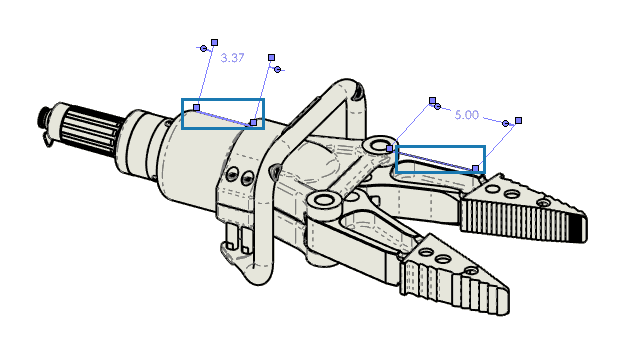

When you select a
dimension, you can highlight the associated elements as
well.
The
feature does not support the following dimensions:
- DimXpert or sketch dimensions,
such
as angular
running
dimensions and ordinate
dimensions
- Cosmetic threads
- Feature dimensions
- Blocked highlight for silhouette edge endpoints
- Referenced edges or points blocked for break view and Detailing mode
legacy
dimensions
To highlight referenced elements:
- Click .
- Select Highlight associated elements
on reference dimension selection.
