Aligning Components

When you use Align Components while designing 3D cabinet layouts, you can preview changes in the graphics area.

This significantly reduces the effort required to align SOLIDWORKS components in 3D cabinet layouts.

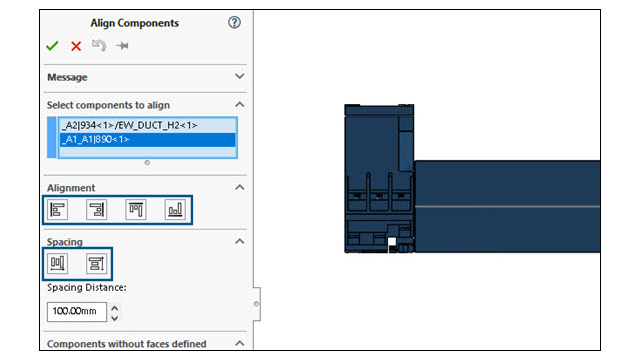

The Align Component PropertyManager has a simplified and improved workflow.
