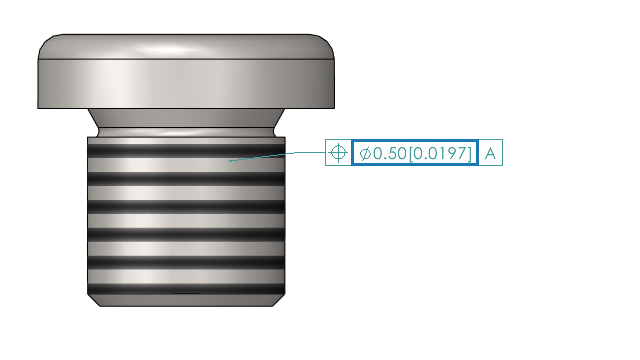

When
you create geometric tolerance symbols, you can display dual
dimensions,
which
show two sets of values, such as inches and millimeters, within a single
dimension.
To display dual dimensions in geometric tolerance symbols:
- In a part or drawing, click Geometric Tolerance
(MBD Dimension toolbar).
- In the graphics area, click to place the symbol.
- Select Range in the
Tolerance dialog box and the Geometric Tolerance PropertyManager
and select Display Dual Dimensions.
