Hot and Cold Runners

You can more easily assign hot or cold runner domains to components of a plastic injection simulation.

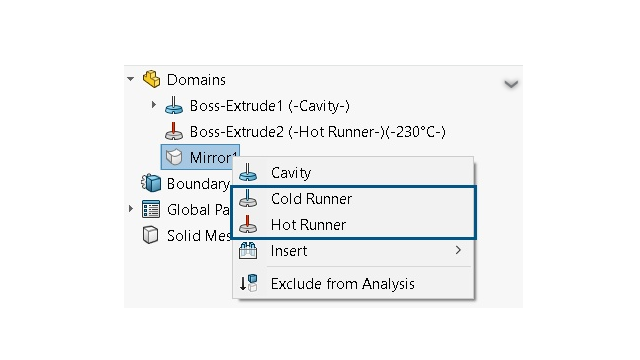

To assign a runner domain type to a body listed under the Domains node, right-click the body and click Hot Runner or Cold Runner.
