Normal Cut in Tab and Slot

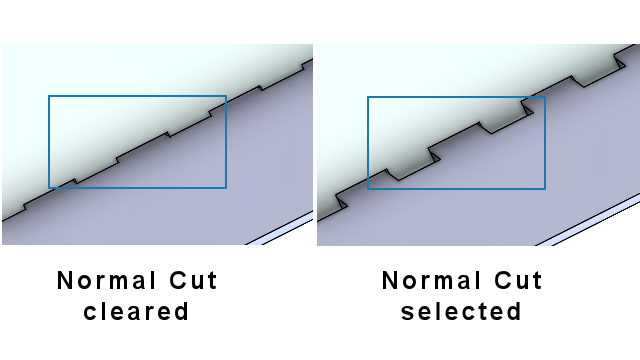

When you use the Tab and Slot tool, you can specify that the slot is normal to the sheet even if the tab is at an angle to the slot. Slots that are normal to are essential in the manufacturing process.

In the Tab and Slot PropertyManager, under Slot, select Normal Cut.

Search 'Normal Cut in Tab and Slot' in the SOLIDWORKS Knowledge Base.
