3DEXPERIENCE Compatibility Updates in the SOLIDWORKS Task Scheduler (2024 SP1)

You can schedule a task to update SOLIDWORKS parts and assemblies for 3DEXPERIENCE compatibility. The update modifies custom properties and configuration behavior to align with the 3DEXPERIENCE requirements.

You can also apply 3DEXPERIENCE integration rules to the task. The rules map parts and assemblies to physical products and representations in the platform. For details about using 3DEXPERIENCE integration rules, see SOLIDWORKS Help: 3DEXPERIENCE Integration Options.

This task is exclusively intended for customers who are preparing to save their models to the 3DEXPERIENCE platform. Once the update is applied, you cannot revert the changes.

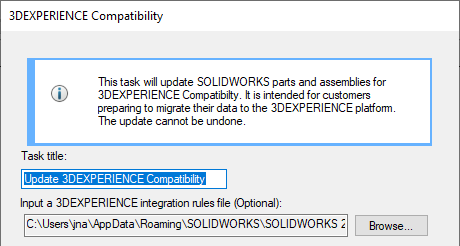

To create a 3DEXPERIENCE compatibility update task in the SOLIDWORKS Task Scheduler:
  1. In SOLIDWORKS, go to Tools > SOLIDWORKS Applications > SOLIDWORKS Task Scheduler.
  2. Click 3DEXPERIENCE Compatibility on the sidebar.
  3. Specify the following:
    • Title
    • Optional 3DEXPERIENCE integration rules file
  4. Add the files or folders that you want to update.
  5. Schedule the task, specify the backup location and advanced options.
  6. Click Finish.
