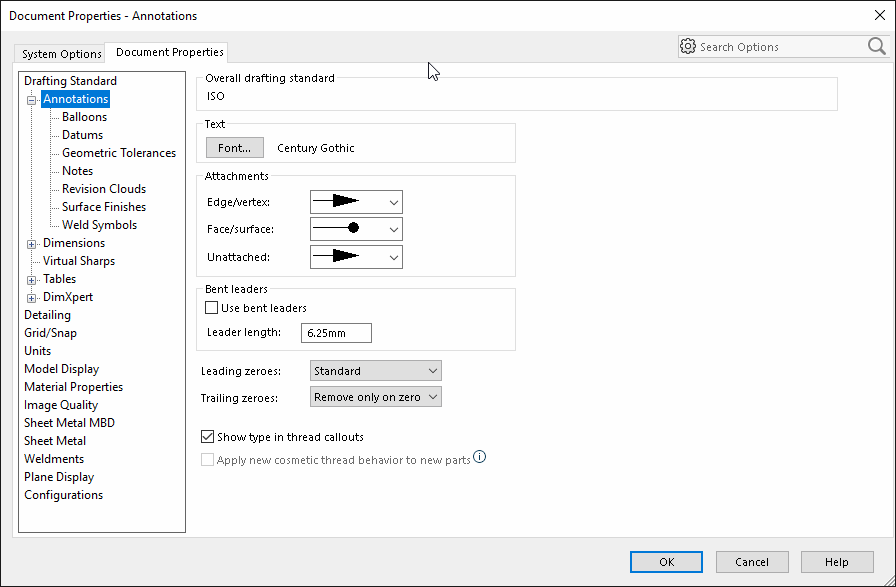

Setting |
Get/Set Methods |
Return Value
or
<Value>
or
<OnFlag> |
Comments |
|
Text - Font... |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingAnnotationTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingAnnotationTextFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the API
set method. |
|
Attachments - Edge/vertex |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingArrowStyleForEdgeVertexAttachment,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingArrowStyleForEdgeVertexAttachment,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swArrowStyle_e.<Value>) |
See swArrowStyle_e
for valid options |
Specifies the default style of dimension arrows attached to edges |
|
Attachments - Face/Surface |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingArrowStyleForFaceAttachment,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingArrowStyleForFaceAttachment,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swArrowStyle_e.<Value>) |
See swArrowStyle_e
for valid options |
Specifies the default style of dimension arrows attached to faces |
|
Attachments - Unattached |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingArrowStyleForUnattached,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingArrowStyleForUnattached,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swArrowStyle_e.<Value>) |
See swArrowStyle_e
for valid options |
Specifies the default style of unattached dimension arrows |
|
Bent leaders - Use bent leaders |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAnnotationUseBentLeaders,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAnnotationUseBentLeaders,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <OnFlag>) |
Boolean value |
Specifies whether to use bent leaders for annotations |
|
Bent leaders - Leader length |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingAnnotationBentLeaderLength,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingAnnotationBentLeaderLength,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value |
Specifies the length of the annotation bend leaders in a drawing document |
|
Leading zeroes |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLeadingZero,
swUserPreferenceOption_e.swDetailingAnnotation)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLeadingZero,
swUserPreferenceOption_e.swDetailingAnnotation, swDetailingLeadingZero_e.<Value>) |
See swDetailingLeadingZero_e
for valid options |
|
|
Trailing zeroes |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimTrailingZero,
swUserPreferenceOption_e.swDetailingAnnotation)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimTrailingZero,
swUserPreferenceOption_e.swDetailingAnnotation, swDetailingDimTrailingZero_e.<Value>) |
Valid options in swDetailingDimTrailingZero_e:
- swDimShowTrailingZeroes
- swDimRemoveTrailingZeroes
- swDimRemoveOnlyOnZero
- swDimSameAsSource
|
|
|
Show type in thread callouts |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAnnotationShowTypeInThreadCallouts,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAnnotationShowTypeInThreadCallouts,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <OnFlag>) |
Boolean value |
|
|
Apply new cosmetic thread behavior to new parts |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAnnotationApplyNewCTDepthArchForToNewParts,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAnnotationApplyNewCTDepthArchForToNewParts,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <OnFlag>) |
Boolean value |
Valid only for part templates. New parts created from the templates with this
option turned on will follow the new behavior for the cosmetic thread depth
measurement and feature ownership. Turn this option off in the template to
create new parts with the old behavior. |
