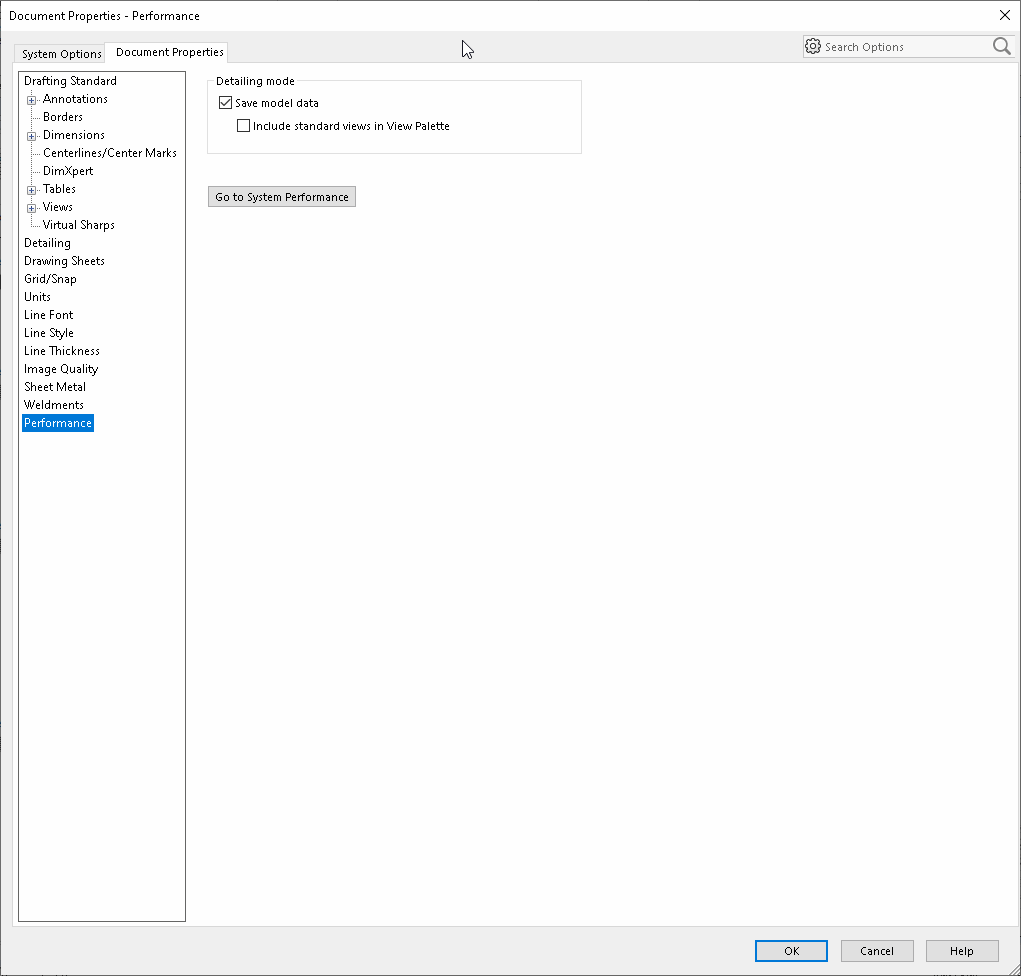

Document Properties > Performance

The Performance tab appears only when a drawing is open.

Setting

Get/Set Methods

Return Value or <Value>

Comments

Detailing mode - Save model data

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingModeSaveModelData, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingModeSaveModelData, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <OnFlag>)

Boolean value

Valid only for drawings

Detailing mode - Include standard views in View Palette

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingModeIncludeStandardViewsInViewPalette, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingModeIncludeStandardViewsInViewPalette, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <OnFlag>)

Boolean value

Valid only for drawings and when Save model data is set to true
