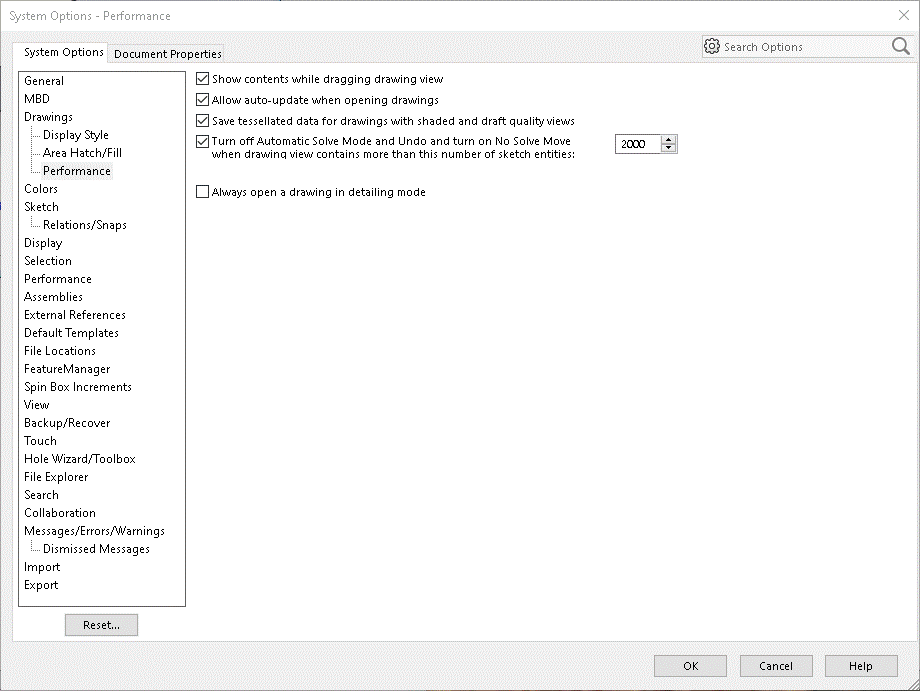

System Options > Drawings > Performance

Setting	Get/Set Methods	Return Value or <Value> or <OnFlag>	Comment
Show contents while dragging drawing view	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingViewShowContentsWhileDragging) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingViewShowContentsWhileDragging, <OnFlag>)	Boolean value	Specifies whether model or view boundary is displayed when view is dragged
Allow auto-update when opening drawings	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAutomaticDrawingViewUpdateDefault ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAutomaticDrawingViewUpdateDefault, <OnFlag>)	Boolean value	Specifies whether drawing views are updated when a drawing is opened
Save tessellated data for drawings with shaded and draft quality views	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingSaveShadedData) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingSaveShadedData, <OnFlag>)	Boolean value	Specifies whether to save tessellated data in drawing documents with shaded and draft quality views
Turn Off Automatic Solve Mode and Undo and turn on No Solve Mode when drawing view contains more than...	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingTurnOffAutomaticSolveModeAndUndo) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingTurnOffAutomaticSolveModeAndUndo, <OnFlag>)	Boolean value	True to turn off Automatic Solve Mode and Undo and turn on No Solve Mode when drawing view contains more than the specified number of sketch entities False to turn on Automatic Solve Mode and Undo and turn off No Solve Mode when drawing view contains more than the specified number of sketch entities
this number of sketch entities	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swDrawing_Auto_Solve_Threshold) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swDrawing_Auto_Solve_Threshold, <Value>)	Integer value	The specified number of sketch entities mentioned in the previous comment
Always open a drawing in detailing mode	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingOpenInDetailingMode) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingOpenInDetailingMode, <OnFlag>)	Boolean value

Search 'System Options > Drawings > Performance' in the SOLIDWORKS Knowledge Base.
