About Adding Cabinets and Devices

You insert devices into a specific drawing. You start by opening the layout drawing for the location of the cabinet.

The dockable panel displays the list of components at this location and the location itself.

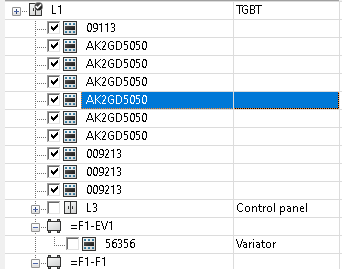

A check box in front of each manufacturer part shows the elements already inserted. The menu displays a Cabinet Layout section containing the specific layout commands. You can also insert elements that do not appear in the list in the side panel. Four icons are available: .
