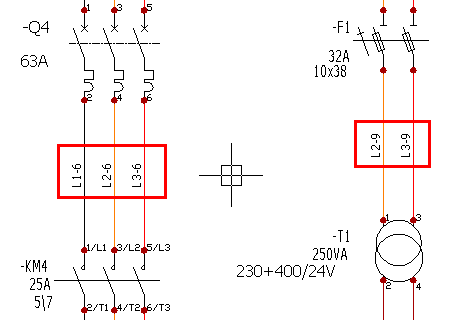

You can apply numbering to every wire that you draw in a schematic. A mark is applied
to it that lets you manage and optimize installation cabling. This numbering is optional, and
you can choose to number only certain sets of wire types.
There are two numbering modes:
- Equipotential numbering mode (all wires connected on the same potential)
- Wire numbering mode (physical wires connecting the components)
Wire numbering follows a simple rule. The numbering starts in the first drawing and continues
through the drawings, based on their order as displayed in the dockable panel. In the drawing,
the actual position of the wires is also taken into account. The numbering starts in the upper
left and increases toward the lower-right hand side.
You define numbering parameters in Wire type management and in the
electrical project configuration. You can start numbering your wires at any time during
electrical project development. You can also manually apply wire numbering, or modify
any previously numbered wire.
