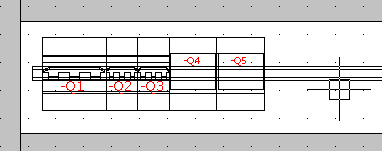

Aligning 2D Footprints

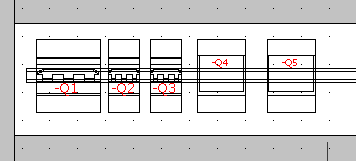

You can align the 2D footprints and center them on a rail.

  1. Select the reference block and click Cabinet layout > 2D footprint alignment .
    The dockable panel displays the following options:
    Icon Description
    Ends the command.
    Returns to the previous interface.
  2. Select the devices to align.
  3. Enter the distance between the selected 2D footprints in the Spacing field.
    You can also use Modify > Align blocks to align the 2D Footprints horizontally and vertically.
