Example: Area Light Appearance

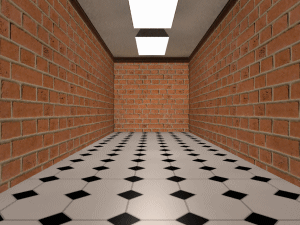

This example shows an enclosed room with no light source. The area light appearance is applied to the ceiling, providing the only illumination to the model.
