In a part, you can add appearances to faces, features, bodies, and the part itself. In an assembly, you can add appearances to components.
A hierarchy applies to appearances, based on where they are assigned on
the model.
- A face's appearance is visible even if its parent feature has an
assigned appearance.
- A feature's appearance is visible even if its parent body has an
assigned appearance.
- A body's appearance is visible even if its parent part has an
assigned appearance.
- A component appearance (assemblies only) overrides all appearance
assignments in the component's faces, features, bodies, or parts.

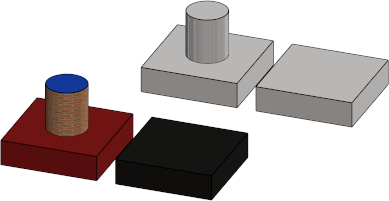

The following example describes the appearance hierarchy.
