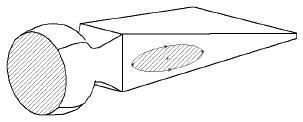

 Area hatch on model face and in sketched profile.
|
 Solid fill on model face.
|
 Area hatch region bounded by a combination of model edges and sketch entities.
|
 Crosshatch in section view.
|
 Solid fill in section view.
|
 Halo of space surrounds dimensions and annotations for better visibility. |
