Automatically Finding Virtual Sharps for Dimensions

While in the dimension tool, you can define virtual sharps between two entities and use the virtual sharps for dimensioning.

1. In the dimension tool, right-click the sketch entity or model geometry, and click Find Intersection.
2. Select the model geometry or sketch entity that intersects your original selection.

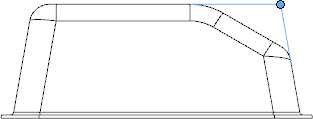

   The virtual sharp is found and applied to the active dimension tool.

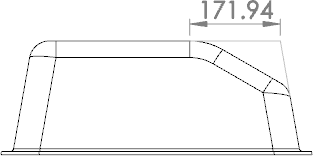

3. Complete the dimension using the resulting virtual sharp.
