You can repair missing direction references in linear component
patterns and circular component patterns.
For linear component patterns, SOLIDWORKS
repairs the missing direction reference by selecting a reference on the component that
is the same type and orientation, and is either the same location or the closest entity
to the missing reference.
For circular component patterns,
SOLIDWORKS repairs the missing direction reference by selecting a reference on the
component that is the same entity and is coaxial with the missing axis. If there are
multiple options for a replacement axis, SOLIDWORKS selects the closest to the missing
axis.
You cannot use
Auto Repair
in Large Design Review
mode.
To
repair missing references in linear or circular component patterns:
- Open a model that contains a linear component pattern or a
circular component pattern with a missing direction reference.

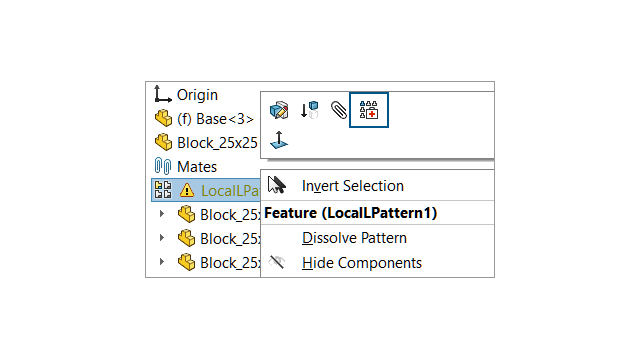

- Right-click the pattern and in the context toolbar, click
Auto Repair
.
If
SOLIDWORKS cannot repair the error, you are prompted to repair the pattern
manually.
