You can
measure geometry
in
the
Document
Preview
area.
You can use
the
measure
tool
when you preview
a
document
supported by the
eDrawings
Viewer.

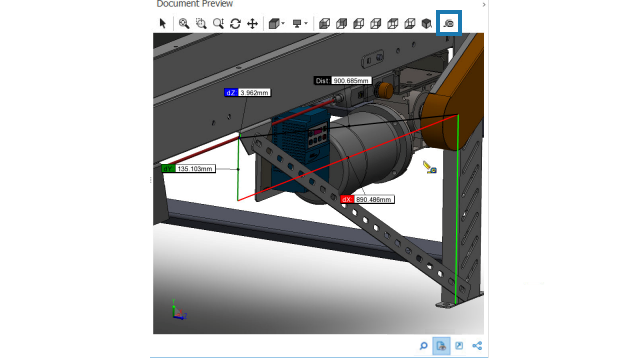

To
measure
in a Document
Preview:
- In the main grid, select a part, assembly, or drawing record.
- Click Document Preview
.The
eDrawings®
preview displays the selected SOLIDWORKS record.
- Click Measure
.
- Select
geometry
to measure in the preview.
