Making Multibody Parts from Assemblies

The Make Multibody Part tool converts an entire assembly into a separate, single multibody part that is linked to the parent assembly.

The multibody part reflects all the assembly features that you create in the parent assembly. Features that you create on the multibody part will not be reflected in the parent assembly. You can perform post-assembly operations on the multibody part, such as material removal, and these appear in downstream platform applications.

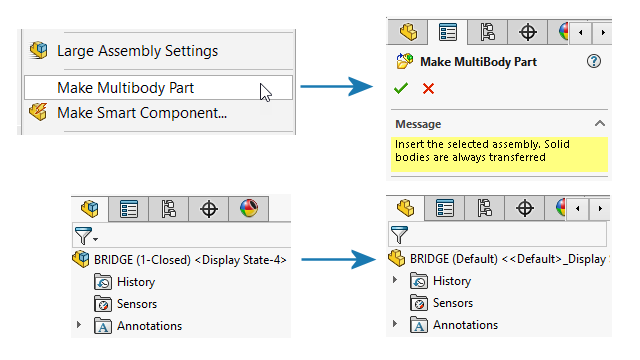

To create a multibody part, in an assembly, click Tools > Make Multibody Part.

The Make Multibody Part feature appears in the FeatureManager® design tree. Solid bodies are transferred by default. You can decide which other assembly entities to transfer such as surface bodies, reference geometry, and materials. Under the Make Multibody Part feature, the tool groups the entities into folders that show the number of instances.

All the bodies in the multibody part inherit their names from the assembly. They also match the position of the parts relative to the origin in the parent assembly. You can choose the configuration to create the multibody part.
