Additional Toolbox Hardware

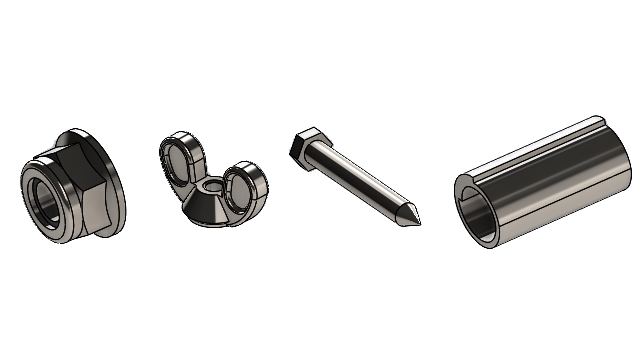

More hardware is available in the ANSI Inch and Metric Toolbox libraries.

Standard Additional Folders Additional Hardware
ANSI Inch
  • The Washers folder includes:
    • Circular Washers
    • Square Beveled Washers
  • The Nuts folder includes subfolders for:
    • Hex Nuts - Prevailing Torque Nuts
    • Wing Nuts
  • The Pins folder includes subfolders for:
    • Clevis Pins
    • Cotter Pins
    • Grooved Pins
    • Spring Pins
    • Straight Pins
    • Tapered Pins
  • The Bolts and Screws > Self Tapping Screws folder includes a large hex head tapping screw.
  • The Bolts and Screws > Machine Screws folder includes a large hex screw.
ANSI Metric Pins. Includes coiled spring pins.

In the ANSI Inch standard, the hex head tapping screw_ai.SLDPRT in Bolts and Screws > Self Tapping Screws > Hex Head Tapping Screw has been updated. If you copy the updated file, you will lose any customization to the existing file.
