Coordinate System to Save
|
In
the Save As dialog box, you can choose
which coordinate system to save with a file. In the dialog box, in
Output Coordinate System, specify
the coordinate system to save. When you open the file, the new coordinate
system is the origin.This functionality does not apply to
parts or assemblies. It applies to the following file types:
- 3D Manufacturing
Format (*.3mf)
- ACIS
(*.sat)
- Additive Manufacturing
File (*.amf)
- IFC 2x3
(*.ifc)
- IFC 4
(*.ifc)
- IGES
(*.igs)
- Parasolid
(*.x_t;*.x_b)
- STEP AP203
(*.step;*.stp)
- STEP AP214
(*.step;*.stp)
- STL
(*.stl)
- VDAFS
(*.vda)
- VRML
(*.wrl)
|
|

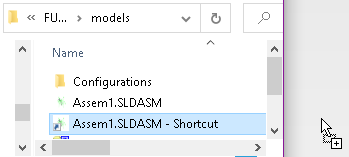

Opening SOLIDWORKS Files from Shortcuts
|
You can drop a
shortcut to a SOLIDWORKS file directly from a local drive into SOLIDWORKS to
open the file.
|
|
Selecting Materials
|
In
the Material dialog box, you can
double-click a material to automatically apply the material to the model and
close the dialog box. You can still click Apply to review the material properties before applying the
material.
|
