Get File Information Example (C#)

This example shows how to access a file and get information about it.

NOTE: If using the primary interop assembly provided with SOLIDWORKS PDM Professional, see Using .NET Framework 4.0 in Stand-alone Applications.

//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio.
//    a. Click File > New > Project > Visual C# > Windows Forms Application.
//    b. Type Files_CSharp in Name.
//    c. Click Browse and navigate to the folder where to create
//       the project.
//    d. Click OK.
//    e. Click Show All Files in the Solution Explorer toolbar and expand
//       Form1.cs in the Solution Explorer.
//    f. Replace the code in Form1.cs with this code.
//    g. To create the form, replace the code in Form1.Designer.cs with this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
//    name in the Solution Explorer, click Add Reference, click
//    Assemblies > Framework in the left-side panel, browse to the top folder of
//    your SOLIDWORKS PDM Professional installation, locate and click
//    EPDM.Interop.epdm.dll, click Open, and click Add).
// 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
//    Embed Interop Types to False to handle methods that pass arrays of
//    structures.
// 4. Check out a file in the vault.
// 5. Click Debug > Start Debugging or press F5.
//
// Postconditions:

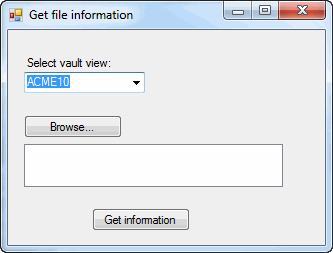

// 1. Displays the Get file information dialog box.
//    a. Select a vault view.
//    b. Click Browse.
//       1. Locate and select the file checked out in Preconditions step 5.
//       2. Click Open.
//    c. Click Get information.
//    d. Displays a message box with information about the selected file.
//    e. Click OK.
// 2. Close the Get file information dialog box.
//----------------------------------------------------------------------------

//Form1.cs


using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;


namespace Files_CSharp
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }
        private IEdmVault5 vault1 = null;

        public void Form1_Load(System.Object sender, System.EventArgs e)
        {
            try
            {
                IEdmVault5 vault1 = new EdmVault5();
                IEdmVault8 vault = (IEdmVault8)vault1;
                EdmViewInfo[] Views = null;

                vault.GetVaultViews(out Views, false);
                VaultsComboBox.Items.Clear();
                foreach (EdmViewInfo View in Views)
                {
                    VaultsComboBox.Items.Add(View.mbsVaultName);
                }
                if (VaultsComboBox.Items.Count > 0)
                {
                    VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        public void BrowseButton_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                ListBox.Items.Clear();

                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                if (!vault1.IsLoggedIn)
                {
                    //Log into selected vault as the current user
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                //Set the initial directory in the Open dialog
                OpenFileDialog.InitialDirectory = vault1.RootFolderPath;
                //Show the Open dialog
                System.Windows.Forms.DialogResult DialogResult;
                DialogResult = OpenFileDialog.ShowDialog();
                //If the user didn't click Open, exit
                if (!(DialogResult == System.Windows.Forms.DialogResult.OK))
                {
                    return;
                }

                foreach (string FileName in OpenFileDialog.FileNames)
                {
                    ListBox.Items.Add(FileName);
                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }


        public void GetInfo_Click(System.Object sender, System.EventArgs e)
        {

            try
            {
                IEdmVault7 vault2 = null;
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                vault2 = (IEdmVault7)vault1;
                if (!vault1.IsLoggedIn)
                {
                    //Log into selected vault as the current user
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                IEdmFile17 aFile = default(IEdmFile17);
                IEdmFolder5 ppoRetParentFolder;
                aFile = (IEdmFile17)vault2.GetFileFromPath(ListBox.Items[0].ToString(), out ppoRetParentFolder);

                //Get configurations
                string msg = "Configurations: " + "\r\n";
                IEdmFolder5 folder = default(IEdmFolder5);
                folder = vault2.RootFolder;

                EdmStrLst5 cfgList = default(EdmStrLst5);
                cfgList = aFile.GetConfigurations();

                IEdmPos5 pos = default(IEdmPos5);
                pos = cfgList.GetHeadPosition();
                string cfgName = null;
                while (!pos.IsNull)
                {
                    cfgName = cfgList.GetNext(pos);
                    msg = msg + cfgName + "r\\n";
                }

                msg = msg + "\r\n";

                //Get type of file
                int typ = 0;
                typ = (int)aFile.FileType;
                msg = msg + "EdmFileType: " + typ + "\r\n";

                msg = msg + "\r\n";

                //Get category of file
                IEdmCategory6 cat = default(IEdmCategory6);
                cat = aFile.Category;
                if ((cat != null))
                {
                    msg = msg + "Category: " + cat.Name + ", Category ID: " + aFile.CategoryID + "\r\n";
                    msg = msg + "\r\n";
                }

                //Get local file timestamp
                string filePath = aFile.Name;
                object fileDate = null;
                fileDate = aFile.GetLocalFileDate(filePath);

                if ((fileDate != null))
                {
                    string text = null;
                    text = fileDate.ToString();
                    msg = msg + aFile.GetLocalPath(folder.ID) + " was modified " + text + "\r\n";
                }
                else
                {
                    msg = msg + "There is no local copy of the file" + "\r\n";
                }

                msg = msg + "\r\n";

                //Get local version number
                int versionNo = 0;
                versionNo = aFile.GetLocalVersionNo(aFile.GetLocalPath(folder.ID));

                if (versionNo == -1)
                {
                    msg = msg + "The local copy of " + aFile.Name + " does not match any existing versions" + "\r\n";
                }
                else
                {
                    string versionStr = null;
                    versionStr = versionNo.ToString();
                    msg = msg + "The local copy of " + aFile.Name + " has version " + versionStr + "\r\n";
                }

                msg = msg + "\r\n";

                //Get current version
                int ver = 0;
                ver = aFile.CurrentVersion;
                msg = msg + "Current version: " + ver + "\r\n";

                msg = msg + "\n";

                //Get local revision name
                string revName = null;
                revName = aFile.GetLocalRevisionName(aFile.GetLocalPath(folder.ID));

                if (string.IsNullOrEmpty(revName))
                {
                    msg = msg + "The local copy of " + aFile.Name + " does not match any existing revisions" + "\r\n";
                }
                else
                {
                    msg = msg + "The local copy of " + aFile.Name + " has revision name " + revName + "r\n";
                }

                msg = msg + "\r\n";

                //Get current revision
                revName = aFile.CurrentRevision;
                msg = msg + "Current revision: " + revName + "\r\n";

                msg = msg + "\r\n";

                //Get local file size
                int fileSize = 0;
                fileSize = (int)aFile.GetLocalFileSize2(aFile.GetLocalPath(folder.ID));

                if (fileSize == -1)
                {
                    msg = msg + "The local copy of " + aFile.Name + " is missing" + "\r\n";
                }
                else
                {
                    msg = msg + "The local copy of " + aFile.Name + " has size " + fileSize + " bytes" + "\r\n";
                }

                msg = msg + "\r\n";

                //Get current workflow state
                IEdmState5 state = default(IEdmState5);
                state = aFile.CurrentState;
                msg = msg + "Current workflow state: " + state.Name + "\n";

                msg = msg + "\r\n";

                //Get whether the file is checked out
                bool checkedOut = false;
                checkedOut = aFile.IsLocked;
                msg = msg + "File is checked out? " + checkedOut + "\r\n";
                if (checkedOut)
                {
                    msg = msg + "Lock path: " + aFile.LockPath + "\n";
                    msg = msg + "Locked by: " + aFile.LockedByUser.Name + ", User ID: " + aFile.LockedByUserID + "\r\n";
                    msg = msg + "Locked in: " + aFile.LockedInFolder.Name + ", Folder ID: " + aFile.LockedInFolderID + "\r\n";
                    msg = msg + "Locked on: " + aFile.LockedOnComputer + ", Vault View ID: " + aFile.LockedOnViewID;
                }

                msg = msg + "\r\n";

                 //Get whether the file has cut list items
                bool hasCutListItems = false;
                hasCutListItems = aFile.HasCutListItems;
                msg = msg + "File has cut list items? " + hasCutListItems + "\r\n";

                MessageBox.Show(msg);

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }
    }
}

Back to top

//Form1.Designer.cs

namespace Files_CSharp
{
    partial class Form1
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components = null;


        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            this.VaultsLabel = new System.Windows.Forms.Label();
            this.VaultsComboBox = new System.Windows.Forms.ComboBox();
            this.BrowseButton = new System.Windows.Forms.Button();
            this.ListBox = new System.Windows.Forms.ListBox();
            this.GetInfo = new System.Windows.Forms.Button();
            this.OpenFileDialog = new System.Windows.Forms.OpenFileDialog();
            this.SuspendLayout();
            //
            //VaultsLabel
            //
            this.VaultsLabel.AutoSize = true;
            this.VaultsLabel.Location = new System.Drawing.Point(13, 26);
            this.VaultsLabel.Name = "VaultsLabel";
            this.VaultsLabel.Size = new System.Drawing.Size(94, 13);
            this.VaultsLabel.TabIndex = 0;
            this.VaultsLabel.Text = " Select vault view:";
            //
            //VaultsComboBox
            //
            this.VaultsComboBox.FormattingEnabled = true;
            this.VaultsComboBox.Location = new System.Drawing.Point(16, 42);
            this.VaultsComboBox.Name = "VaultsComboBox";
            this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
            this.VaultsComboBox.TabIndex = 1;
            //
            //BrowseButton
            //
            this.BrowseButton.Location = new System.Drawing.Point(16, 85);
            this.BrowseButton.Name = "BrowseButton";
            this.BrowseButton.Size = new System.Drawing.Size(98, 23);
            this.BrowseButton.TabIndex = 3;
            this.BrowseButton.Text = "Browse...";
            this.BrowseButton.UseVisualStyleBackColor = true;
            this.BrowseButton.Click +=new System.EventHandler(BrowseButton_Click);
            //
            //ListBox
            //
            this.ListBox.FormattingEnabled = true;
            this.ListBox.HorizontalScrollbar = true;
            this.ListBox.Location = new System.Drawing.Point(16, 114);
            this.ListBox.Name = "ListBox";
            this.ListBox.Size = new System.Drawing.Size(259, 43);
            this.ListBox.TabIndex = 4;
            //
            //GetInfo
            //
            this.GetInfo.Location = new System.Drawing.Point(84, 178);
            this.GetInfo.Name = "GetInfo";
            this.GetInfo.Size = new System.Drawing.Size(98, 23);
            this.GetInfo.TabIndex = 5;
            this.GetInfo.Text = "Get information";
            this.GetInfo.UseVisualStyleBackColor = true;
            this.GetInfo.Click +=new System.EventHandler(GetInfo_Click);
            //
            //OpenFileDialog
            //
            this.OpenFileDialog.Title = "Open";
            //
            //Form1
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6f, 13f);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(317, 215);
            this.Controls.Add(this.GetInfo);
            this.Controls.Add(this.ListBox);
            this.Controls.Add(this.BrowseButton);
            this.Controls.Add(this.VaultsComboBox);
            this.Controls.Add(this.VaultsLabel);
            this.Name = "Form1";
            this.Text = "Get file information";
            this.Load += new System.EventHandler(this.Form1_Load);
            this.ResumeLayout(false);
            this.PerformLayout();

        }

        #endregion

        internal System.Windows.Forms.Label VaultsLabel;
        internal System.Windows.Forms.ComboBox VaultsComboBox;
        internal System.Windows.Forms.Button BrowseButton;
        internal System.Windows.Forms.ListBox ListBox;
        internal System.Windows.Forms.Button GetInfo;
        internal System.Windows.Forms.OpenFileDialog OpenFileDialog;
    }
}
