SOLIDWORKS Electrical API 2024.0.0
Electrical API
Public Member Functions | List of all members
IEwLibraryX Interface Reference

Use this interface to manage an EwLibraryX object. More...

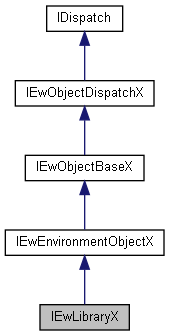

Inheritance diagram for IEwLibraryX:
Inheritance graph

Public Member Functions

long getID ()

EwCreatorType getEwCreator (EwErrorCode *errorCode)
 Deprecated use getEwCreatorType interface now. More...

EwErrorCode setName (BSTR strName)
 set the name of library More...

BSTR getName (EwErrorCode *errorCode)
 return name of current Library More...

EwErrorCode setDescription (BSTR strLgCode, BSTR strVal)
 set a description of Library More...

BSTR getDescription (BSTR strLgCode, EwErrorCode *errorCode)
 return a description of language parameter More...

EwErrorCode setVersionNumber (LONG lValueId)
 set a version Number of current Library More...

LONG getVersionNumber (EwErrorCode *errorCode)
 get a version of current Library More...

EwErrorCode setEwLibContentType (EwLibContentType eLibContentType)
 set a content type of current Library More...

EwLibContentType getEwLibContentType (EwErrorCode *errorCode)
 return content type of current Library More...

IEwLibraryX duplicate (EwErrorCode *errorCode)
 Duplicate current library. More...

- Public Member Functions inherited from IEwEnvironmentObjectX
DATE getCreationDate (EwErrorCode *errorCode)
 Get the creation date of the current object. More...

DATE getModificationDate (EwErrorCode *errorCode)
 Get the last modification date of the current object. More...

EwCreatorType getEwCreatorType (EwErrorCode *errorCode)
 Get the creator of the current object. More...

BSTR getModifiedBy (EwErrorCode *eErrorCode)
 Get the last user name that modified the current object. More...

BSTR getCreatedBy (EwErrorCode *eErrorCode)
 Get the user name that created the current object. More...

EwErrorCode setTranslatedData (LONG nUserDataNumber, BSTR strLanguage, BSTR strValue)
 Set the value of a translated text. More...

BSTR getTranslatedData (LONG nUserDataNumber, BSTR strLanguage, EwErrorCode *errorCode)
 Get the value of a translated text. More...

- Public Member Functions inherited from IEwObjectBaseX
EwErrorCode insert ()
 Insert the object inside the current project. More...

EwErrorCode remove ()
 Remove the object from the current project. More...

EwErrorCode update ()
 Update the object inside the current project. More...


Detailed Description

Use this interface to manage an EwLibraryX object.

Since
2020 SP0

Member Function Documentation

◆ duplicate()

IEwLibraryX IEwLibraryX::duplicate ( EwErrorCode *  errorCode)

Duplicate current library.

Warning
The duplicate object must call insert to be save.
Since
2023 SP1
Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
  • EW_OBJECT_NOT_FOUND impossible to duplicate
  • EW_NO_ERROR if no error detected
Returns
a copy of current library.

◆ getDescription()

BSTR IEwLibraryX::getDescription ( BSTR  strLgCode,
EwErrorCode *  errorCode
)

return a description of language parameter

Parameters
[in]strLgCodelanguage of description to return
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_BAD_INPUTS if the code language name is not found
Returns
the description of library by language.

◆ getEwCreator()

EwCreatorType IEwLibraryX::getEwCreator ( EwErrorCode *  errorCode)

Deprecated use getEwCreatorType interface now.

return a creator of current Library

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
the creator of current library

◆ getEwLibContentType()

EwLibContentType IEwLibraryX::getEwLibContentType ( EwErrorCode *  errorCode)

return content type of current Library

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
applicationType Application type of current Library

◆ getID()

long IEwLibraryX::getID ( )
Returns
id of current Library

◆ getName()

BSTR IEwLibraryX::getName ( EwErrorCode *  errorCode)

return name of current Library

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
name of current Library

◆ getVersionNumber()

LONG IEwLibraryX::getVersionNumber ( EwErrorCode *  errorCode)

get a version of current Library

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Returns
a version of current library

◆ setDescription()

EwErrorCode IEwLibraryX::setDescription ( BSTR  strLgCode,
BSTR  strVal
)

set a description of Library

Parameters
[in]strLgCodelanguage to change description
[in]strValValue of description
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_BAD_INPUTS if the code language name is not found

◆ setEwLibContentType()

EwErrorCode IEwLibraryX::setEwLibContentType ( EwLibContentType  eLibContentType)

set a content type of current Library

Parameters
[in]eLibContentTypeapplication type to apply
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred

◆ setName()

EwErrorCode IEwLibraryX::setName ( BSTR  strName)

set the name of library

Parameters
[in]strNamename of library
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred

◆ setVersionNumber()

EwErrorCode IEwLibraryX::setVersionNumber ( LONG  lValueId)

set a version Number of current Library

Parameters
[in]lValueIdversion of library
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
Generated on Mon Aug 28 2023 13:39:21 for SOLIDWORKS Electrical API by doxygen 1.9.4
