IEwProjectEntity3DX Interface Reference

Use this interface to manage an Entity3D inside a project. More...

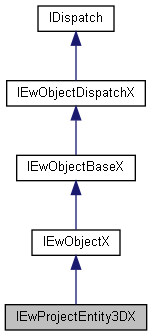

Inheritance diagram for IEwProjectEntity3DX:
Inheritance graph

Public Member Functions

EwErrorCode set3DID (BSTR strID)

EwErrorCode setEwProjectFileID (LONG lFileID)

EwEntity3DType getEwEntity3DType (EwErrorCode *errorCode)
 return entity type of the entity More...

BSTR get3DID (EwErrorCode *errorCode)
 return the 3D ID More...

LONG getEwObjectID (EwErrorCode *errorCode)
 return the object ID More...

EwErrorCode setEwObjectID (LONG lID, EwEntity3DType eEntity3DType)

LONG getEwProjectFileID (EwErrorCode *errorCode)
 return the ID where the object is inserted More...

EwErrorCode suppress ()

EwErrorCode resume ()

BOOL isSuppressed ()

EwErrorCode setSWID (BSTR strID)

BSTR getSWID (EwErrorCode *errorCode)
 Return the ID of the component in SOLIDWORKS. More...

EwErrorCode setPhysicalID (BSTR strID)

BSTR getPhysicalID (EwErrorCode *errorCode)
 Return the physical ID of the physical product associated on the Platform. More...

- Public Member Functions inherited from IEwObjectX
LONG getID ()

- Public Member Functions inherited from IEwObjectBaseX
EwErrorCode insert ()
 Insert the object inside the current project. More...

EwErrorCode remove ()
 Remove the object from the current project. More...

EwErrorCode update ()
 Update the object inside the current project. More...


Detailed Description

Use this interface to manage an Entity3D inside a project.

Since
2018 SP0

Member Function Documentation

◆ get3DID()

BSTR IEwProjectEntity3DX::get3DID ( EwErrorCode *  errorCode)

return the 3D ID

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
Returns
3d id.

◆ getEwEntity3DType()

EwEntity3DType IEwProjectEntity3DX::getEwEntity3DType ( EwErrorCode *  errorCode)

return entity type of the entity

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
Returns
Entity type

◆ getEwObjectID()

LONG IEwProjectEntity3DX::getEwObjectID ( EwErrorCode *  errorCode)

return the object ID

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
Returns
Object ID

◆ getEwProjectFileID()

LONG IEwProjectEntity3DX::getEwProjectFileID ( EwErrorCode *  errorCode)

return the ID where the object is inserted

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
Returns
File ID

◆ getPhysicalID()

BSTR IEwProjectEntity3DX::getPhysicalID ( EwErrorCode *  errorCode)

Return the physical ID of the physical product associated on the Platform.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
Returns
the Physical ID of the physical product associated on the Platform..

◆ getSWID()

BSTR IEwProjectEntity3DX::getSWID ( EwErrorCode *  errorCode)

Return the ID of the component in SOLIDWORKS.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
Returns
the ID of the component in SOLIDWORKS.

◆ isSuppressed()

BOOL IEwProjectEntity3DX::isSuppressed ( )

◆ resume()

EwErrorCode IEwProjectEntity3DX::resume ( )

◆ set3DID()

EwErrorCode IEwProjectEntity3DX::set3DID ( BSTR  strID)

◆ setEwObjectID()

EwErrorCode IEwProjectEntity3DX::setEwObjectID ( LONG  lID,
EwEntity3DType  eEntity3DType
)

◆ setEwProjectFileID()

EwErrorCode IEwProjectEntity3DX::setEwProjectFileID ( LONG  lFileID)

◆ setPhysicalID()

EwErrorCode IEwProjectEntity3DX::setPhysicalID ( BSTR  strID)

◆ setSWID()

EwErrorCode IEwProjectEntity3DX::setSWID ( BSTR  strID)

◆ suppress()

EwErrorCode IEwProjectEntity3DX::suppress ( )
