IEwProjectHarnessX Interface Reference

Use this interface to manage the Harness inside a project. More...

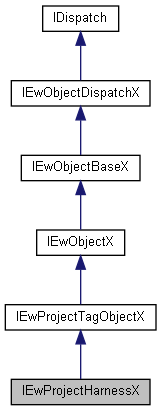

Inheritance diagram for IEwProjectHarnessX:
Inheritance graph

Public Member Functions

VARIANT getEwProjectManufacturerPartArray (EwErrorCode *errorCode)
 Get the manufacturer part object interfaces of the current Harness (IEwProjectManufacturerPartX). More...

VARIANT getEwProjectComponentManufacturerPartArray (EwErrorCode *errorCode)
 Get the manufacturer part object interfaces of the components added to the Harness (IEwProjectManufacturerPartX). More...

VARIANT getEwProjectWireArray (EwErrorCode *errorCode)
 Get all the wire object interfaces of the current Harness (IEwProjectWireX). More...

VARIANT getEwProjectCableArray (EwErrorCode *errorCode)
 Get all the cable object interfaces of the current Harness, IEwProjectCableX. More...

VARIANT getAllObject (EwErrorCode *errorCode)
 Get an array of IDs containing all the objects which belong to the harness. More...

EwErrorCode removeAllObject ()
 Remove all objects from the harness. More...

EwErrorCode removeObject (VARIANT vArray)
 Remove list of object ids from current harness. More...

- Public Member Functions inherited from IEwProjectTagObjectX
EwErrorCode setUserData (LONG nUserDataNumber, BSTR strValue)
 Set user data of the object. More...

BSTR getUserData (LONG nUserDataNumber, EwErrorCode *errorCode)
 Get user data of the object. More...

EwErrorCode setTranslatedData (LONG nUserDataNumber, BSTR strLanguage, BSTR strValue)
 Set the value of a translated text. More...

BSTR getTranslatedData (LONG nUserDataNumber, BSTR strLanguage, EwErrorCode *errorCode)
 Get the value of a translated text. More...

BSTR getTag (EwErrorCode *errorCode)
 Get the mark of this object. More...

EwErrorCode setTag (BSTR strValue)
 Set the mark of this object. More...

BSTR getTagRoot (EwErrorCode *errorCode)
 Get the mark root of this object. More...

EwErrorCode setTagRoot (BSTR strValue)
 Set the mark root of this object. More...

EwTagMode getTagMode (EwErrorCode *errorCode)
 Get the mark mode of this object. More...

EwErrorCode setTagMode (EwTagMode eTagMode)
 Set the mark mode of this object. More...

long getTagNumber (EwErrorCode *errorCode)
 Get the mark number of this object. More...

EwErrorCode setTagNumber (long lValue)
 Set the mark number of this object. More...

EwErrorCode setNextTagNumber ()
 Set the next number to have a unique mark. More...

VARIANT_BOOL isTagUnique (EwErrorCode *errorCode)
 Returns true or false if mark is unique. More...

IEwObjectX duplicate (EwErrorCode *errorCode)
 Duplicate current project object. More...

- Public Member Functions inherited from IEwObjectX
LONG getID ()

- Public Member Functions inherited from IEwObjectBaseX
EwErrorCode insert ()
 Insert the object inside the current project. More...

EwErrorCode remove ()
 Remove the object from the current project. More...

EwErrorCode update ()
 Update the object inside the current project. More...


Detailed Description

Use this interface to manage the Harness inside a project.

Since
2018 SP0

Member Function Documentation

◆ getAllObject()

VARIANT IEwProjectHarnessX::getAllObject ( EwErrorCode *  errorCode)

Get an array of IDs containing all the objects which belong to the harness.

Since
2021 SP0
Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_INVALID_OBJECT if current object has not been initialized
  • EW_UNDEFINED_ERROR if another error occurred return the array of ID

◆ getEwProjectCableArray()

VARIANT IEwProjectHarnessX::getEwProjectCableArray ( EwErrorCode *  errorCode)

Get all the cable object interfaces of the current Harness, IEwProjectCableX.

Since
2021 SP0
Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_INVALID_OBJECT if current object has not been initialized
  • EW_UNDEFINED_ERROR if another error occurred return the array of IEwProjectCableX

◆ getEwProjectComponentManufacturerPartArray()

VARIANT IEwProjectHarnessX::getEwProjectComponentManufacturerPartArray ( EwErrorCode *  errorCode)

Get the manufacturer part object interfaces of the components added to the Harness (IEwProjectManufacturerPartX).

Since
2021 SP0
Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_INVALID_OBJECT if current object has not been initialized
  • EW_UNDEFINED_ERROR if another error occurred return the array of IEwProjectManufacturerPartX

◆ getEwProjectManufacturerPartArray()

VARIANT IEwProjectHarnessX::getEwProjectManufacturerPartArray ( EwErrorCode *  errorCode)

Get the manufacturer part object interfaces of the current Harness (IEwProjectManufacturerPartX).

Since
2021 SP0
Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_INVALID_OBJECT if current object has not been initialized
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized return the array of IEwProjectManufacturerPartX

◆ getEwProjectWireArray()

VARIANT IEwProjectHarnessX::getEwProjectWireArray ( EwErrorCode *  errorCode)

Get all the wire object interfaces of the current Harness (IEwProjectWireX).

Since
2021 SP0
Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_INVALID_OBJECT if current object has not been initialized
  • EW_UNDEFINED_ERROR if another error occurred return the array of IEwProjectWireX

◆ removeAllObject()

EwErrorCode IEwProjectHarnessX::removeAllObject ( )

Remove all objects from the harness.

Since
2021 SP0
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_INVALID_OBJECT if current object has not been initialized
  • EW_UNDEFINED_ERROR if another error occurred

◆ removeObject()

EwErrorCode IEwProjectHarnessX::removeObject ( VARIANT  vArray)

Remove list of object ids from current harness.

Since
2021 SP0
Parameters
[in]vArrayan array of object ID to remove in the current Harness.
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_INVALID_OBJECT if current object has not been initialized
  • EW_BAD_INPUTS if vArray is not a array of int or a long.
  • EW_UNDEFINED_ERROR if another error occurred
Generated on Mon Aug 28 2023 13:39:21 for SOLIDWORKS Electrical API by doxygen 1.9.4


Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:   Feedback on Help Topics
Page:   SOLIDWORKS Electrical API: IEwProjectHarnessX Interface Reference
*Comment:
*   I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Print Topic

Select the scope of content to print:
x

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

 Never show this message again
x

Web Help Content Version: API Help (English only) 2024 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.

0.20.46
