SOLIDWORKS Electrical API 2024.0.0
Electrical API
Public Member Functions | List of all members
IEwProjectMultilingualTextX Interface Reference

Use this interface to manage a Multilingual Text inside a project. More...

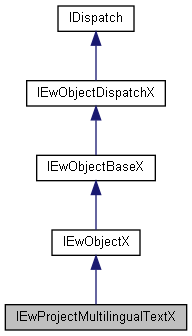

Inheritance diagram for IEwProjectMultilingualTextX:
Inheritance graph

Public Member Functions

long getFileID (EwErrorCode *errorCode)
 Return the file ID containing the Multilingual Text. More...

double getXPosition (EwErrorCode *errorCode)
 Return the X coordinate of the Multilingual Text. More...

EwErrorCode setXPosition (double dXCoordinate)
 Sets the X coordinate of the Multilingual Text. More...

double getYPosition (EwErrorCode *errorCode)
 Return the Y coordinate of the Multilingual Text. More...

EwErrorCode setYPosition (double dYCoordinate)
 Sets the Y coordinate of the Multilingual Text. More...

double getRotationAngle (EwErrorCode *errorCode)
 Return the rotation angle in degrees of the Multilingual Text. More...

EwErrorCode setRotationAngle (double dAngle)
 Set the rotation angle in degrees of the Multilingual Text. More...

EwErrorCode setEwAlignmentType (EwAlignmentType eAlignmentType)
 Set the Alignement type of the Multilingual Text. More...

EwAlignmentType getEwAlignmentType (EwErrorCode *errorCode)
 Return the EwAlignmentType enum type of the Multilingual Text. More...

BSTR getText (BSTR strLanguageCode, EwErrorCode *errorCode)
 Return the Text from the specified language code of the Multilingual Text. More...

EwErrorCode setText (BSTR strLanguageCode, BSTR strNewText)
 Sets the Text from the specified language code of the Multilingual Text. More...

IEwProjectMultilingualTextFontX getEwProjectMultilingualTextFont (EwMultilingualTextFont eMultilingualTextFont, EwErrorCode *errorCode)
 Return the IEwProjectMultilingualTextFontX interface object from the specified language index of the Multilingual Text. More...

- Public Member Functions inherited from IEwObjectX
LONG getID ()

- Public Member Functions inherited from IEwObjectBaseX
EwErrorCode insert ()
 Insert the object inside the current project. More...

EwErrorCode remove ()
 Remove the object from the current project. More...

EwErrorCode update ()
 Update the object inside the current project. More...


Detailed Description

Use this interface to manage a Multilingual Text inside a project.

Since
2023 SP0

Member Function Documentation

◆ getEwAlignmentType()

EwAlignmentType IEwProjectMultilingualTextX::getEwAlignmentType ( EwErrorCode *  errorCode)

Return the EwAlignmentType enum type of the Multilingual Text.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
  • EW_NO_ERROR if no error detected
Returns
the EwAlignmentType enum type

◆ getEwProjectMultilingualTextFont()

IEwProjectMultilingualTextFontX IEwProjectMultilingualTextX::getEwProjectMultilingualTextFont ( EwMultilingualTextFont  eMultilingualTextFont,
EwErrorCode *  errorCode
)

Return the IEwProjectMultilingualTextFontX interface object from the specified language index of the Multilingual Text.

Parameters
[in]eMultilingualTextFontEwMultilingualTextFont enum value that specified the index of the Multilingual Text Font.
[out]errorCodeEwErrorCode enum type, can be:
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
  • EW_BAD_INPUTS if the specified language index is invalid.
  • EW_NO_ERROR if no error detected
Returns
Return the IEwProjectMultilingualTextFontX interface object from the specified language index of the Multilingual Text.

◆ getFileID()

long IEwProjectMultilingualTextX::getFileID ( EwErrorCode *  errorCode)

Return the file ID containing the Multilingual Text.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
  • EW_NO_ERROR if no error detected
Returns
the file ID containing the Multilingual Text.

◆ getRotationAngle()

double IEwProjectMultilingualTextX::getRotationAngle ( EwErrorCode *  errorCode)

Return the rotation angle in degrees of the Multilingual Text.

0 by default.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
  • EW_NO_ERROR if no error detected
Returns
the rotation angle in degrees of the Multilingual Text.

◆ getText()

BSTR IEwProjectMultilingualTextX::getText ( BSTR  strLanguageCode,
EwErrorCode *  errorCode
)

Return the Text from the specified language code of the Multilingual Text.

Parameters
[in]strLanguageCodeThe language code to get the text in this language.
[out]errorCodeEwErrorCode enum type, can be:
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
  • EW_NO_ERROR if no error detected
Returns
Return the Text from the specified language code of the Multilingual Text.

◆ getXPosition()

double IEwProjectMultilingualTextX::getXPosition ( EwErrorCode *  errorCode)

Return the X coordinate of the Multilingual Text.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
  • EW_NO_ERROR if no error detected
Returns
Return the X coordinate of the Multilingual Text.

◆ getYPosition()

double IEwProjectMultilingualTextX::getYPosition ( EwErrorCode *  errorCode)

Return the Y coordinate of the Multilingual Text.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
  • EW_NO_ERROR if no error detected
Returns
Return the Y coordinate of the Multilingual Text.

◆ setEwAlignmentType()

EwErrorCode IEwProjectMultilingualTextX::setEwAlignmentType ( EwAlignmentType  eAlignmentType)

Set the Alignement type of the Multilingual Text.

Parameters
[in]eAlignmentTypeThe new alignement.
Returns
EwErrorCode enum type, can be:
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
  • EW_BAD_INPUTS if eAlignmentType is not a valid value
  • EW_NO_ERROR if no error detected

◆ setRotationAngle()

EwErrorCode IEwProjectMultilingualTextX::setRotationAngle ( double  dAngle)

Set the rotation angle in degrees of the Multilingual Text.

0 by default.

Parameters
[in]dAngleThe new rotation angle.
Returns
EwErrorCode enum type, can be:
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
  • EW_NO_ERROR if no error detected

◆ setText()

EwErrorCode IEwProjectMultilingualTextX::setText ( BSTR  strLanguageCode,
BSTR  strNewText
)

Sets the Text from the specified language code of the Multilingual Text.

Parameters
[in]strLanguageCodeThe language code to set the text in this language.
[in]strNewTextthe text for the specified language.
Returns
EwErrorCode enum type, can be:
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
  • EW_NO_ERROR if no error detected

◆ setXPosition()

EwErrorCode IEwProjectMultilingualTextX::setXPosition ( double  dXCoordinate)

Sets the X coordinate of the Multilingual Text.

Parameters
[in]dXCoordinatethe X coordinate.
Returns
EwErrorCode enum type, can be:
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
  • EW_NO_ERROR if no error detected

◆ setYPosition()

EwErrorCode IEwProjectMultilingualTextX::setYPosition ( double  dYCoordinate)

Sets the Y coordinate of the Multilingual Text.

Parameters
[in]dYCoordinatethe Y coordinate.
Returns
EwErrorCode enum type, can be:
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
  • EW_NO_ERROR if no error detected
Generated on Mon Aug 28 2023 13:39:21 for SOLIDWORKS Electrical API by doxygen 1.9.4


Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:   Feedback on Help Topics
Page:   SOLIDWORKS Electrical API: IEwProjectMultilingualTextX Interface Reference
*Comment:
*   I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Print Topic

Select the scope of content to print:
x

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

 Never show this message again
x

Web Help Content Version: API Help (English only) 2024 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.

0.20.46
