SOLIDWORKS Electrical API 2024.0.0
Electrical API
IEwProjectReportX Interface Reference

Use this interface to manage the report used inside the project. More...

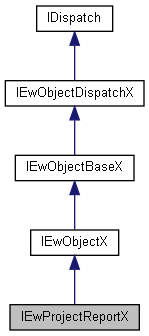

Inheritance diagram for IEwProjectReportX:
Inheritance graph

Public Member Functions

EwProjectDataExportType getEwProjectDataExportType (EwErrorCode *errorCode)
 Return the type of the report used inside the project. More...

LONG getOrderNo (EwErrorCode *errorCode)
 Return the Order No of the report used inside the project. More...

EwErrorCode setOrderNo (LONG lOrderNo)
 Update the Order No of thereport used inside the project. More...

BSTR getFilter (EwErrorCode *errorCode)
 Return the filter name of the report used inside the project. More...

EwErrorCode setFilter (BSTR strFilter)
 Update the filter name of the report used inside the project. More...

BSTR getReportFileName (EwErrorCode *errorCode)
 Return the Report FileName of the report used inside the project. More...

EwErrorCode setReportFileName (BSTR strReportFileName)
 Update the ReportFileName name of the report used inside the project. More...

- Public Member Functions inherited from IEwObjectX
LONG getID ()

- Public Member Functions inherited from IEwObjectBaseX
EwErrorCode insert ()
 Insert the object inside the current project. More...

EwErrorCode remove ()
 Remove the object from the current project. More...

EwErrorCode update ()
 Update the object inside the current project. More...


Detailed Description

Use this interface to manage the report used inside the project.

Since
2018 SP0

Member Function Documentation

◆ getEwProjectDataExportType()

EwProjectDataExportType IEwProjectReportX::getEwProjectDataExportType ( EwErrorCode errorCode)

Return the type of the report used inside the project.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
Returns
type of the report project. kProjectDataExportUnknown if the object is invalid.

◆ getFilter()

BSTR IEwProjectReportX::getFilter ( EwErrorCode errorCode)

Return the filter name of the report used inside the project.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
Returns
Filter of the report project.

◆ getOrderNo()

LONG IEwProjectReportX::getOrderNo ( EwErrorCode errorCode)

Return the Order No of the report used inside the project.

Order No is used to sort reports when generating them. For instance Drawings list must be generated after all the others.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
Returns
OrderNo of the report project.

◆ getReportFileName()

BSTR IEwProjectReportX::getReportFileName ( EwErrorCode errorCode)

Return the Report FileName of the report used inside the project.

Parameters
[out]errorCodeEwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
Returns
ReportFileName of the report used inside the project.

◆ setFilter()

EwErrorCode IEwProjectReportX::setFilter ( BSTR  strFilter)

Update the filter name of the report used inside the project.

Parameters
[in]strFilterthe new Filter name for current report.
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_BAD_INPUT if another error occurred
  • EW_INVALID_OBJECT if object is not initialized

◆ setOrderNo()

EwErrorCode IEwProjectReportX::setOrderNo ( LONG  lOrderNo)

Update the Order No of thereport used inside the project.

Parameters
[in]lOrderNothe new OrderNo for current report.
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized

◆ setReportFileName()

EwErrorCode IEwProjectReportX::setReportFileName ( BSTR  strReportFileName)

Update the ReportFileName name of the report used inside the project.

Parameters
[in]strReportFileNamethe new Report FileName name for current report.
Returns
EwErrorCode enum type, can be:
  • EW_NO_ERROR if no error detected
  • EW_UNDEFINED_ERROR if another error occurred
  • EW_INVALID_OBJECT if object is not initialized
