Add-in sample in C++

Table of Contents

Purpose

This document explains how to create a c++ ATL/COM dll, to be used as Add-in for application using API “EwAPI”.

Note
Only 64 bit DLL Add-in are supported.

Create C++ project with Visual Studio

  • Open Visual Studio

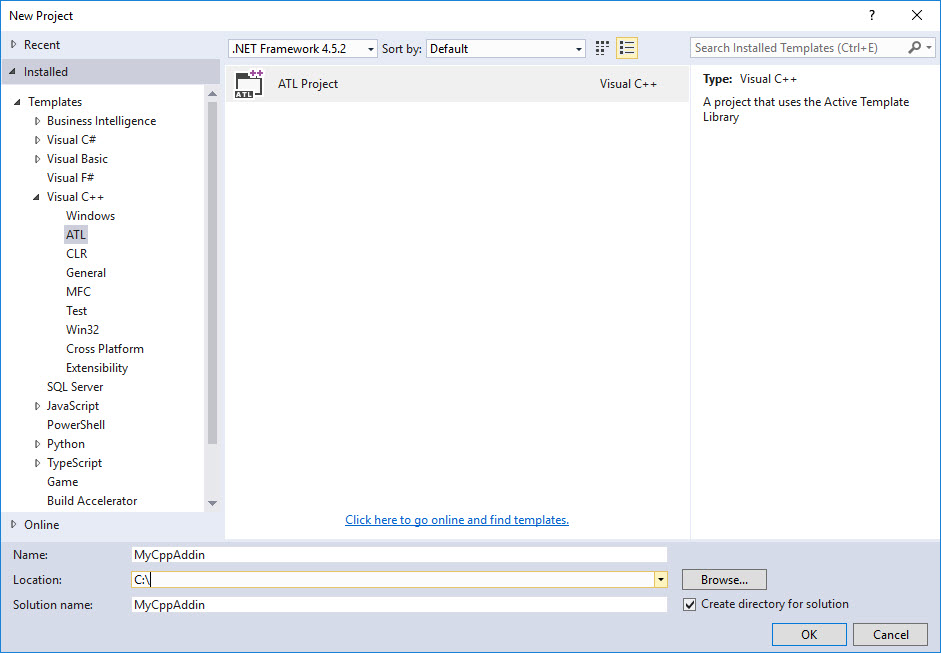

  • File -> New -> Project
  • Select Visual C++ -> ATL

Click OK.

Click Next.

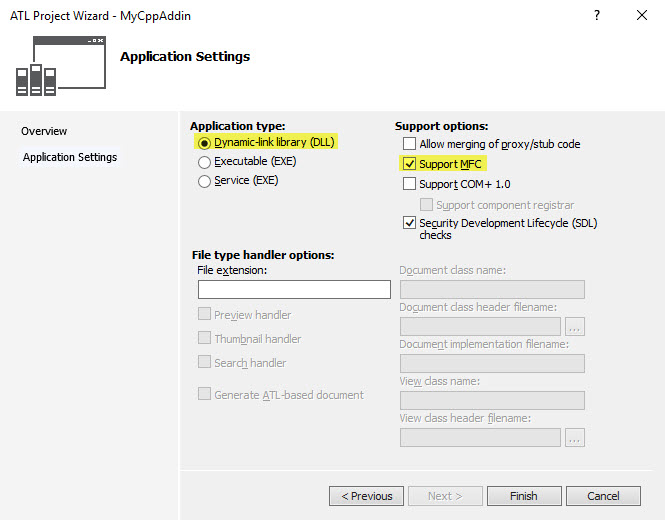

Select Dynamic-link library Type (DLL).

Check Support MFC.

Click Finish.
