Setting |
Get/Set Methods |
Return Value or <Value> |
Comments |
|

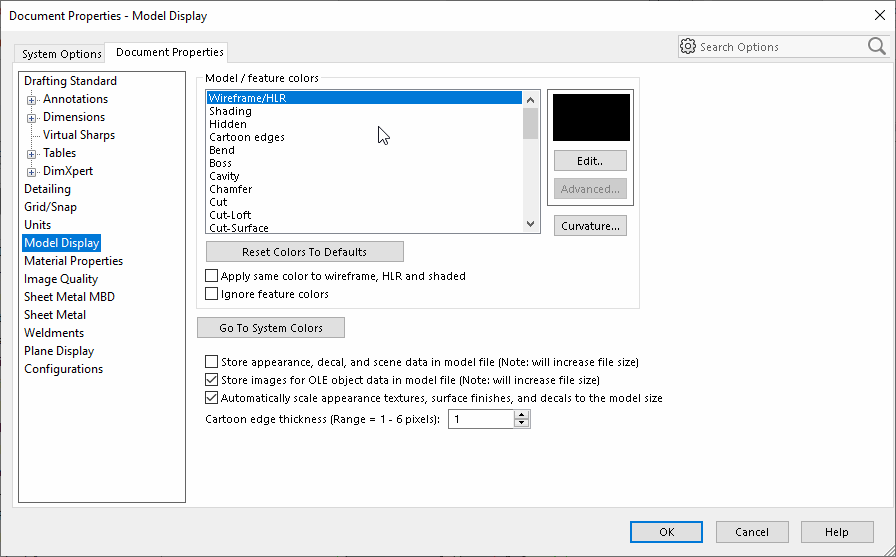

Model/Feature colors - Wireframe/HLR |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorWireFrame,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorWireFrame,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Shading |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorShading,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorShading,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Hidden |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorHidden,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorHidden,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Bend |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatBend,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatBend,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Boss |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatBoss,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatBoss,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Cavity |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatCavity,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatCavity,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Chamfer |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatChamfer,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatChamfer,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Cut |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatCut,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatCut,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Cut-Loft |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatLoftCut,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatLoftCut,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Cut-Surface |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatSurfCut,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatSurfCut,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Cut-Sweep |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatSweepCut,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatSweepCut,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Weld Bead |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatWeldBead,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatWeldBead,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Extrude |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatExtrude,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatExtrude,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Fillet |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatFillet,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatFillet,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Hole |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatHole,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatHole,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Library Feature |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatLibrary,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatLibrary,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Loft |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatLoft,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatLoft,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - MidSurface |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatMidSurface,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatMidSurface,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Pattern |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatPattern,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatPattern,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Surface |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatRefSurface,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatRefSurface,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Revolution |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatRevolution,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatRevolution,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Shell |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatShell,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatShell,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Derived Part |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatDerivedPart,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatDerivedPart,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Sweep |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatSweep,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatSweep,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Thicken |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatThicken,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatThicken,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Rib |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatRib,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatRib,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Dome |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatDome,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatDome,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Form feature |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatForm,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatForm,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Shape Feature |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatShape,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatShape,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Replace Face |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatReplaceFace,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatReplaceFace,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Structural Member |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatStructuralMember,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatStructuralMember,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Gusset |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatGusset,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatGusset,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - End cap |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatEndCap,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatEndCap,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Wrap |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatWrap,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDocumentColorFeatWrap,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
See IColorTable
for valid options |
|
|
Model/Feature colors - Apply same color to wireframe, HLR, and shaded |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swColorsWireframeHLRShadedSame,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swColorsWireframeHLRShadedSame,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to apply same color to wireframe, HLR, and shaded |
|
Model/Feature colors - Ignore feature colors |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swIgnoreFeatureColors,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swIgnoreFeatureColors,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
For parts only; specifies whether to ignore feature colors |
|
Store appearance, decal, and scene
data in model file (Note: will increase file size) |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swStoreImagesWithModel,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swStoreImagesWithModel,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to store images
with model |
|
Store images for OLE object data in model file (Note: wil increase file
size) |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swStoreOLEImagesWithModel,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swStoreOLEImagesWithModel,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
For parts and assemblies only; Default value is true |
|
Automatically scale appearance textures, surface finishes, and decals to the model
size |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAutoScaleTextureSFDecalsToModelSize,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAutoScaleTextureSFDecalsToModelSize,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
|
|
Cartoon edge thickness (Range = 1 - 6 pixels) |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swCartoonEdgeThickness,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swCartoonEdgeThickness,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
1 <= Integral number of pixels <= 6 |
For parts and assemblies only |
