Model Break Views

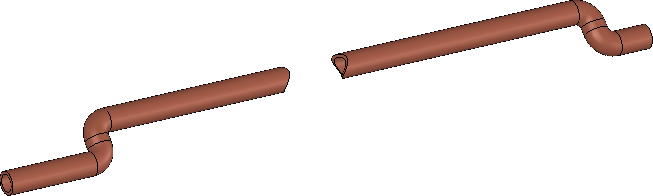

When you create model break views in the SOLIDWORKS software, you can view them in eDrawings .eprt files. This supports the model based definition workflow.

Model break views support:

Query highlighting
3D Views
Annotation views
Multiple configurations

Click MBV .

Search 'Model Break Views' in the SOLIDWORKS Knowledge Base.
