SOLIDWORKS PDM to Electrical Connector

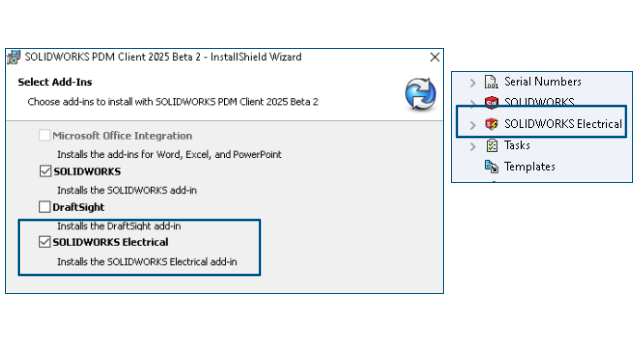

The SOLIDWORKS Electrical to SOLIDWORKS PDM connector is available with the SOLIDWORKS PDM install. It is integrated with SOLIDWORKS PDM and is not available as a SOLIDWORKS PDM add-in.

You can configure the SOLIDWORKS Electrical connector from the SOLIDWORKS PDM Administration tool. A SOLIDWORKS Electrical node is present under the SOLIDWORKS PDM vault for the configuration.

Search 'SOLIDWORKS PDM to Electrical Connector' in the SOLIDWORKS Knowledge Base.
