Create
an Excel spreadsheet with appropriate column headers. For cable libraries, you can create
column names for cable libraries and core libraries. Use the following rules when creating
the spreadsheet:
All column headers are required. The column headers vary depending on
the type of library file you want to create. You can use different header names for the
fields in the Excel file and map the names to the library header fields when you import
the Excel file.
A cable library needs one row to define the cable, plus a row to
define each core. A piping and tubing covering library can have column names for covering
libraries and materials libraries. Other libraries need only one row.
The following tables list the column headers for each file
type.
| Column Header for Cable
Library |
|
Column Header for Core
Library |
| Cable Name |
Outer Diameter |
|
Cable Name |
Color |
| Part Number |
Number of Cores |
|
Wire Name |
Disp Color |
| Description |
Minimum Bend Radius |
|
Size |
Minimum Bend Radius |
| Mass per-Unit- Length |
|
|
Outer Diameter |
Seal |
| |
|
|
Mass per-Unit-Length |
|
You can view the unit of measure for Minimum
Bend Radius and Outer Diameter in
the Cable Wire Library Wizard
.
When you save the XML file using the Routing Library manager, the XML
file and the Routing Library manager use the same unit of measure.
| Column Header for Wire
Library |
| Wire Name |
Disp Color |
| Part Number |
Minimum Bend Radius |
| Description |
Size |
| Outer Diameter |
Seal |
| Color |
|
| Column Header for Component
Library |
| Part Number |
Pin List |
| Library Name |
Terminals |
| Configuration Name |
Component Outer Diameter |
| Description |
Gauge |
| Column Header for Ribbon Cable
Library |
| Cable Name |
Color |
| Part Number |
Disp Color |
| Description |
Number of Conductors |
| Thickness |
Minimum Bend Radius |
| Width |
|
| Column Header for Piping
& Tubing Covering Library |
|
Column Header for Piping
& Tubing Material Library |
| Covering ID |
Packing |
|
Covering ID |
Melting Point |
| Covering Name |
Part Number |
|
SOLIDWORKS Material Library |
Reinforcement Insert |
| Covering Type |
Application |
|
SOLIDWORKS Material |
Insert |
| Width |
Voltage Breakdown |
|
SOLIDWORKS Material ID |
Composition |
| Thickness |
Shape |
|
Material |
Loss on Ignition |
| |
|
|
Color |
Elongation |
| |
|
|
Construction |
Peel Adhesion |
| |
|
|
Service Temperature |
|
| Column Header for Electrical
Covering Library |
| Covering ID |
Outer Diameter |
| Covering Name |
Color |
| Application |
Part Number |
| Cost |
Description |
| Density |
|
The cable wire library and the covering library define the mass
properties of an electrical route that has cables, cores, wires, and coverings. The
software calculates and applies these properties to the solid bodies based on the values
set in the libraries. You can view the mass by using SOLIDWORKS Mass Properties.

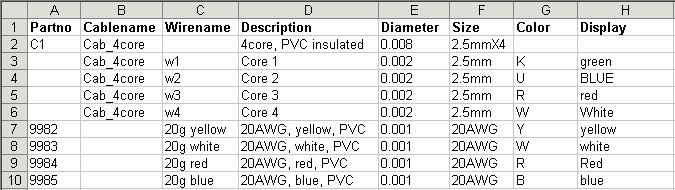

This
example shows an Excel file for one 4-core cable, part number C1, and
four individual wires, part numbers 9982 through 9985.

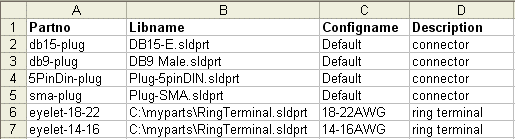

This
example shows an Excel file for six components.
