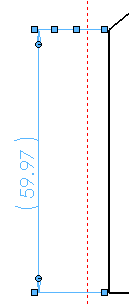

Jogging Extension Lines You can right-click linear dimension extension lines and select Display Options > Jog to place a jog in the line. The dimension extension line after selecting Jog The dimension extension line after dragging a jog point To remove a jog from a selected dimension extension line, right-click the line and clear Display Options > Jog. Parent topicDimension Extension Lines Attaching Dimension Extension Lines Making Slanted Dimension Extension Lines Flipping the Direction of Dimension Leaders Example: Smart Extension Lines Example: Dimension Line Terminology Creating Jogs in Dimension Extension Lines You can right-click an extension line and select Display Options > Jog to jog linear dimension extension lines. To create a jog in a dimension extension line: Right-click a dimension extension line and select Display Options > Jog . Horizontally or vertically drag a point on the dimension extension line to create a bend. To remove a jog from a selected dimension extension line, right-click the line and clear Display Options > Jog . Multiple Jogs for Dimensions and Callouts You can apply multiple jogs to existing dimension and callout leaders by clicking Multi-jog Leader from the Leaders tab of the Dimension PropertyManager. You can also add jogs after you place a dimension or callout by right-clicking and selecting Add Jog Point. Drag jog points to create the jog after inserting the jog point. You can add multi-jog leaders to hole callouts and to these dimension types:Diameter Radial Chamfer
Jogging Extension Lines You can right-click linear dimension extension lines and select Display Options > Jog to place a jog in the line. The dimension extension line after selecting Jog The dimension extension line after dragging a jog point To remove a jog from a selected dimension extension line, right-click the line and clear Display Options > Jog. Parent topicDimension Extension Lines Attaching Dimension Extension Lines Making Slanted Dimension Extension Lines Flipping the Direction of Dimension Leaders Example: Smart Extension Lines Example: Dimension Line Terminology Creating Jogs in Dimension Extension Lines You can right-click an extension line and select Display Options > Jog to jog linear dimension extension lines. To create a jog in a dimension extension line: Right-click a dimension extension line and select Display Options > Jog . Horizontally or vertically drag a point on the dimension extension line to create a bend. To remove a jog from a selected dimension extension line, right-click the line and clear Display Options > Jog . Multiple Jogs for Dimensions and Callouts You can apply multiple jogs to existing dimension and callout leaders by clicking Multi-jog Leader from the Leaders tab of the Dimension PropertyManager. You can also add jogs after you place a dimension or callout by right-clicking and selecting Add Jog Point. Drag jog points to create the jog after inserting the jog point. You can add multi-jog leaders to hole callouts and to these dimension types:Diameter Radial Chamfer
Creating Jogs in Dimension Extension Lines You can right-click an extension line and select Display Options > Jog to jog linear dimension extension lines. To create a jog in a dimension extension line: Right-click a dimension extension line and select Display Options > Jog . Horizontally or vertically drag a point on the dimension extension line to create a bend. To remove a jog from a selected dimension extension line, right-click the line and clear Display Options > Jog .
Multiple Jogs for Dimensions and Callouts You can apply multiple jogs to existing dimension and callout leaders by clicking Multi-jog Leader from the Leaders tab of the Dimension PropertyManager. You can also add jogs after you place a dimension or callout by right-clicking and selecting Add Jog Point. Drag jog points to create the jog after inserting the jog point. You can add multi-jog leaders to hole callouts and to these dimension types:Diameter Radial Chamfer
