The default location for weldment profiles is
C:\ProgramData\SOLIDWORKS\SOLIDWORKSversion\weldment
profiles.
The
subfolder
structure within the weldment profiles folder
determines the selections that appear in the Structural
Member PropertyManager.
Selections
from the PropertyManager and the corresponding File Explorer folder and file structure
are set up as follows:
- home folder. Contains one or more
standard folders. In the example below,
weldment profiles is the home folder, and contains nine
standard
folders, for
example ansi, ansi
inch, and
iso.
In the PropertyManager, the name of each standard folder appears as a selection in Standard.
- standard folders.
Contains
one or more type
of
the configured library feature parts, for example angle iron, c
channel, and
pipe.
In the PropertyManager, after
you select
Standard,
the names of
the
library feature parts appear in Type.
- type
library
feature parts.
Contains
one or more
configurations
of the library feature
part. In
the PropertyManager,
after you
select a Type,
the
configuration
names of
the
library feature part
appear
in Size.

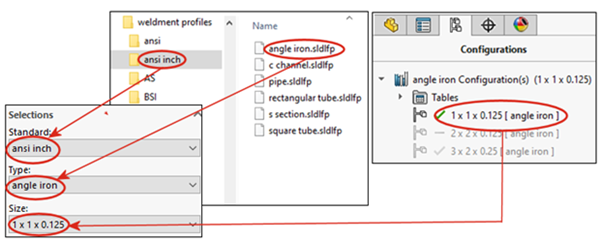

Structural Member PropertyManager and File
Explorer:
