You can display component configuration names in the FeatureManager design tree.
To show component configuration names:
-
At the top of the FeatureManager design tree, right-click the
part, assembly, or drawing name, and select .
You can specify display options for component names and
descriptions at the document level or the system level. When using the
system level settings, you cannot change the settings at the document
level.
To specify options at the system level, click
and select Override document
level tree display. Click Component Name and Description to open the dialog
box.
When you select Override document level tree display, the options in
the Component Name and Description
dialog box are disabled at the document level.
-
In the dialog box, select Configuration Name.

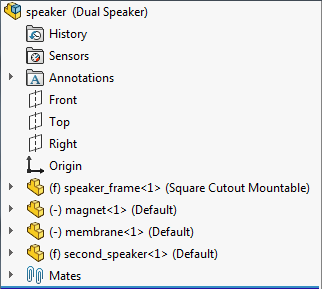

The FeatureManager design tree displays the component
configuration names.
