Aligning DimXpert Dimensions

You can align DimXpert annotations to a user-defined plane.

DimXpert dimensions can become obscured when you apply them to contoured geometry. You can align the DimXpert annotations by moving them to a selected plane or planar face.

To align DimXpert annotations to a user-defined plane:

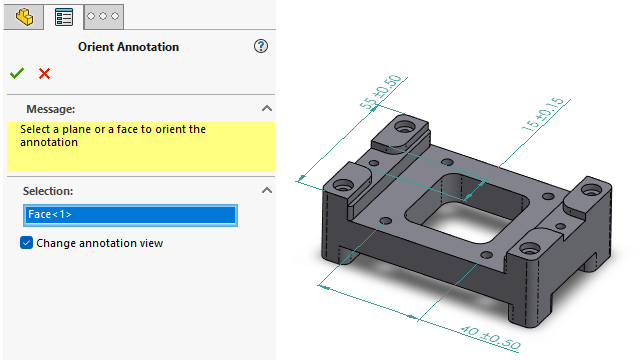

  1. Right-click a DimXpert annotation and click Select Annotation View > By Selection.
  2. In the graphics area, select a plane or planar face to define the new orientation.
  3. In the PropertyManager, select Change annotation view to move the annotation to the orientation view that corresponds to the new orientation.
  4. Click .
