Creating Two Separate Positional Tolerances for Slots

You can create two separate positional tolerances for slots.

1. Click Size Dimension (MBD Dimension toolbar) or Tools > MBD Dimension > Size Dimension.
2. Click the edge of the length of a slot and click in the graphics area to place the dimension.
3. Click .
4. Apply a geometric tolerance and a position tolerance and click in the graphics area to place the tolerance.
5. Click .
6. Click Size Dimension (MBD Dimension toolbar) or Tools > MBD Dimension > Size Dimension.
7. Click the edge of the width of a slot and click in the graphics area to place the dimension.
8. Click .

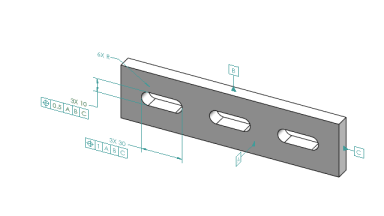

9. To choose the type of dimension to apply to a feature, such as the "6XR" in the illustration, see Using the Dimension PropertyManager.
