You can dimension chamfers in drawings. In addition to the usual dimension display properties, chamfer dimensions have their own options for leader display, text display, and X display.
X display is the size of the X in a chamfer dimension with two numbers, such as
1 X 45° (Length X Angle), 45° X 1 (Angle X Length), 1 X 1 (Length X Length) or C1
(chamfers of 45°).
 |

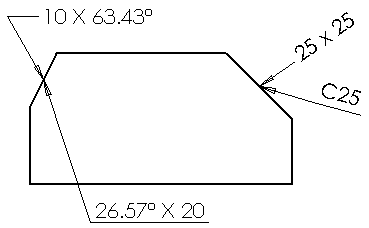

Chamfer dimensions can be displayed
with various types of text and leaders and sizes of X. |
Tolerance
types for chamfer dimensions include:
- None
- Bilateral
- Limit
- Symmetric
- MIN
- MAX
- Fit (linear dimensions only)
- Fit with tolerance (linear dimensions only)
You can set document defaults for chamfer dimension leader display, text display, and X display in .
