DimXpert for Parts

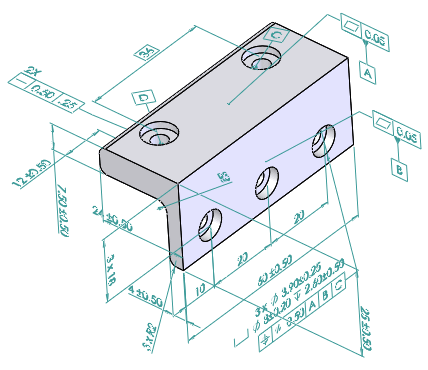

DimXpert for parts is a set of tools you use to apply dimensions and tolerances to parts according to the requirements of ASME Y14.41-2019 and ISO 16792:2006. You can then use the tolerances with TolAnalyst to perform stack analysis on assemblies, or with downstream CAM, other tolerance analyses, or metrology applications.

Set Overall drafting standard to ANSI (ASME) or ISO under Tools > Options > Document Properties > Drafting Standard.


Features

For DimXpert, features means manufacturing features. For example, in the CAD world, you create a "shell" feature, which is a type of "pocket" feature in the manufacturing world.

Supported manufacturing features:

  • Boss
  • Chamfer
  • Cone
  • Cylinder
  • Discrete feature types
  • Fillet
  • Counterbore hole
  • Countersink hole
  • Simple hole
  • Intersect circle
  • Intersect line
  • Intersect plane
  • Intersect point
  • Notch
  • Plane
  • Pocket
  • Slot
  • Surface
  • Width
  • Sphere
