In
assemblies with multiple display states, you can use the Display
State Table to control the display states.
The
Display State Table lets you:
- Control the Hide/Show state of a component
- Add a new display state by clicking in the Creates a new display state column
- Add a new component to the table by double-clicking the
component in the PropertyManager or graphics
area
- Double-click a display state's name cell to switch to that
display state
- Right-click a display state's name cell to rename the display
state or switch to it

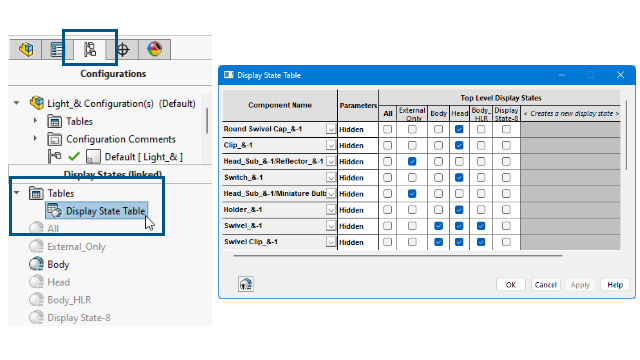

To access display state tables, in the ConfigurationManager
, under Tables
,
right-click
Display State
Table
and click Show Table.
General Information
- The table appears if the top-level assembly contains more than
one display state.
- The table is available for unlinked and linked display states.
For linked display states, the table shows the display states that are available
for the active configuration.
- In
the table, click Hide/Show Referenced Display State
to hide or show the Referenced
Display State row for each component in all top-level assembly
display states.
