Expand all |
Expands multiple objects to
display the respective child parts. |
Collapse all |
Hides the child parts of
multiple objects. |

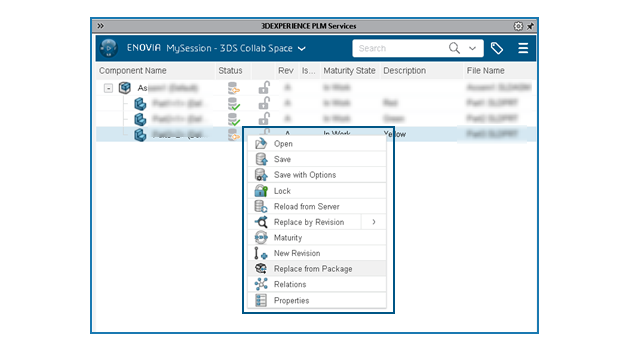

Open |
Opens the selected object in a
separate SOLIDWORKS window. You cannot open multiple windows for
the same object. |
Save |
Saves the data directly in the
3DEXPERIENCE platform without opening
the save dialog box. It uses the same user preferences as
selected in the save dialog box. The save dialog box appears
only when an error occurs during the save process. |
Save with Options |
Opens the save dialog box for
the selected objects and save them to the 3DEXPERIENCE platform. |
Save as New |
Saves the object as a new
object in the 3DEXPERIENCE platform.
|
Lock |
Locks the selected
object. |
Unlock |
Unlocks the selected
object. |
Reload from Server |
Updates the selected revision
in a session with the latest version that exists in the 3DEXPERIENCE platform. |
Replace by Revision |
Opens the Replace by Revision dialog box
to replace the revision that is open in the session. |
Replace by Latest Revision |
Updates the revision for the
selected object with the latest revision. |
Update Revisions |
Opens the Update Revisions dialog box to
choose the type of revision for the objects in an
assembly. |
Maturity |
Changes the maturity state of
an object. |
New
Revision |
Creates a new revision of the
selected object on the 3DEXPERIENCE
platform and refreshes the information to reflect the new
revision. |
Replace Content |
Opens the File Selection Box
to select an object that replaces the object selected
earlier. |
Properties |
Displays the 3DEXPERIENCE properties of the selected
object. |
Relations |
Displays the ecosystem of the
related objects by navigating on relationships and
paths. |
Replace from package |
Modifies the object from the
package. This option is visible only for
those objects that part of the data exchange process through
data packages.
|
