Creating Bend Notches

You can create bend notches on sheet metal parts in the flattened state.

To create bend notches:

  1. In a flattened sheet metal part, click Bend Notch (Sheet Metal toolbar) or Insert > Sheet Metal > Bend Notch.
  2. In the graphics area, select the bends where you want to add notches.
  3. In the PropertyManager, specify options and click .
    The notches appear in the flattened sheet metal part. You can edit the notches only when the part is flattened.

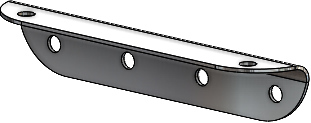

    Flattened Bent
