Creating DimXpert Dimensions from Feature and Reference Dimensions

You do not have to create DimXpert dimensions manually, which saves time.

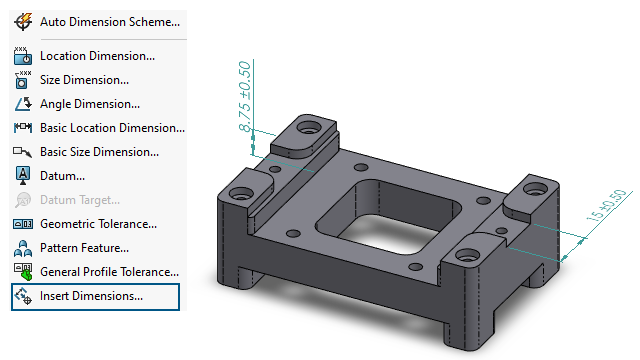

1. Click Insert Dimensions (MBD Dimension toolbar) or Tools > MBD Dimension > Insert Dimensions.
2. In the PropertyManager:
   1. For Features, select features from the graphics area or FeatureManager^® design tree.
   2. For Feature Dimensions or Reference Dimensions, select dimensions from the graphics area.
   3. Click .
