Creating DimXpert Dimensions from Sketch Dimensions

You can create DimXpert dimensions from sketch dimensions.

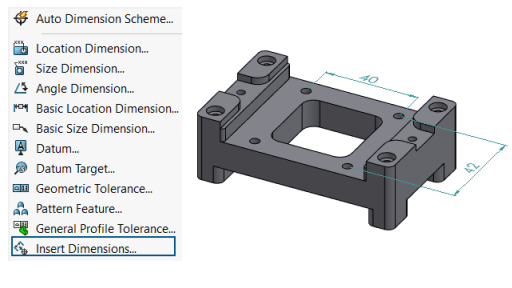

1. Click Insert Dimensions (MBD Dimension toolbar) or Tools > MBD Dimension > Insert Dimensions.
2. In the PropertyManager:
   1. For Features, select features from the graphics area or FeatureManager^® design tree.
   2. For Sketch Dimensions, select the dimensions in the graphics area to create DimXpert dimensions.
   3. Click .
